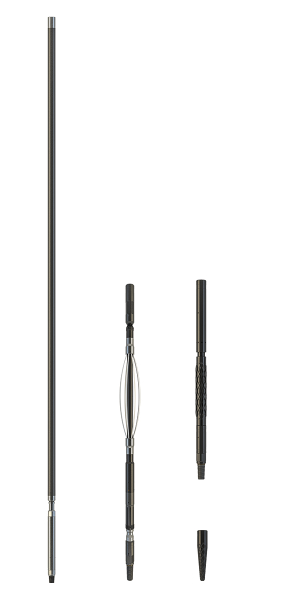

When an obstruction is encountered the pump and scraper mechanisms are activated by reciprocating the work-string at the hold up depth. Solvents or chemicals are then discharged to various ports and scraper mechanisms in the BHA.
TOOL APPLICATIONS:
Replaces time consuming runs and potential tubular damage with Gauge Cutters
Can be used with Capillary CT and Wireline to pin point only the areas where chemical treatment is required
An alternative to bull heading or treating the entire completion string
DESIGN FEATURES & BENEFITS:
Time savings in comparison to traditional methods
Multiple diameter scrapers and ports included in single BHA
Selective discharge, ports in BHA only open if a restriction exists
Minimises chemical usage
Modular in design to suit varying applications
Available to suit all completion sizes
Simple robust design
Selected components QPQ treated
Hexagonal flats for safe make-up and break out
Connection options to suit customer requirements
Corrosion resistant materials
Assembly Part No. Tubing Size Maximum OD BHA Length
279-2875-XXX-RX 2.875" 2.499" 232"
279-3500-XXX-RX 3.500" 3.124" 232"
279-4000-XXX-RX 4.000" 3.548" 238"
279-4500-XXX-RX 4.500" 4.156" 238"
279-5000-XXX-RX 5.000" 4.696" 238"
279-5500-XXX-RX 5.500" 5.192" 238"
