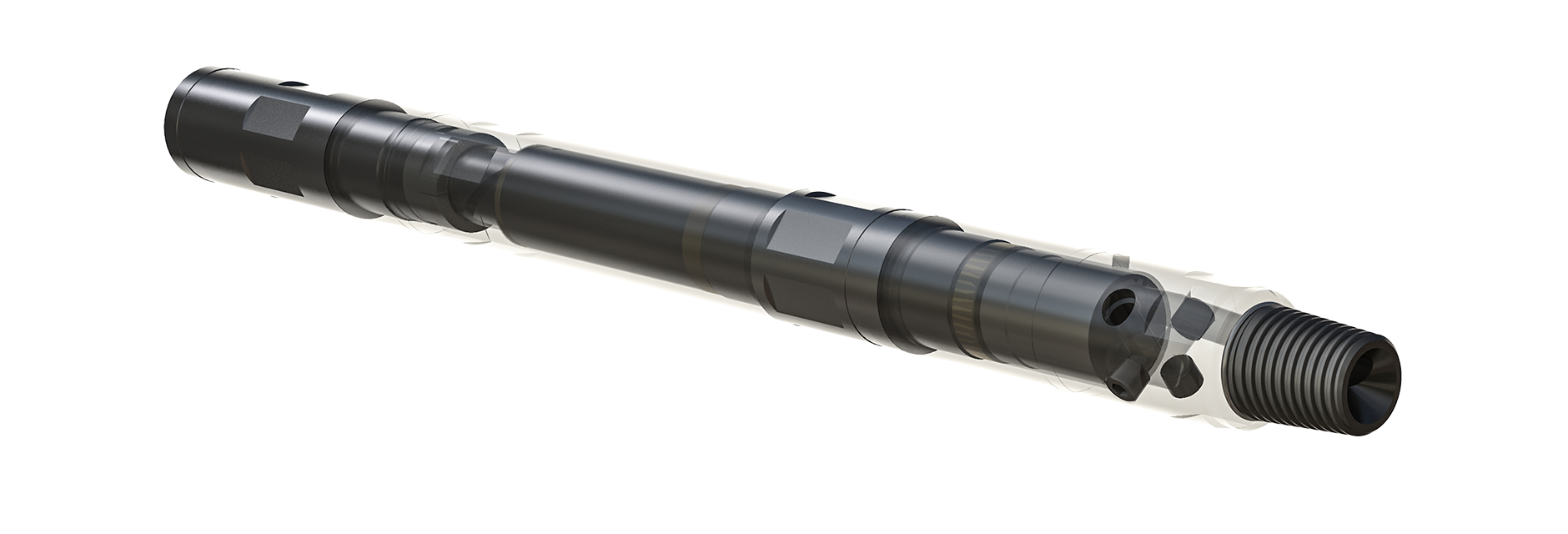

MULTI CYCLE CIRC SUB

Limar Oil Tools

Subs and X/O

Each time a high flow rate followed by a low flow rate sequence is carried out, the tool alternates between circulating modes and remains in that position until the next cycle is performed. It does not require a constant high flow rate in order to remain in either position, making it the ideal tool for a variety of applications.

TOOL APPLICATIONS:
Improved hole cleaning during jetting and milling operations, isolating Motors or tools below from flow, Nitrogen and Stimulation Chemicals as well as spotting fluids.

DESIGN FEATURES & BENEFITS:
Flow or pressure activated
Available in a range of sizes to suit industry standard Coiled Tubing BHA’s
Suitable for high temperature environments
Compact design ideal for restricted height applications
Torque-thru capability
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant materials
Assembly Part No. Actual OD Make up Length
305-1687-XXX-RX 1.687" 22.00"
305-1750-XXX-RX 1.750" 22.00"
305-2125-XXX-RX 2.125" 25.35"
305-2250-XXX-RX 2.250" 25.35"
305-2875-XXX-RX 2.875" 30.27"
305-3125-XXX-RX 3.125" 30.27"
