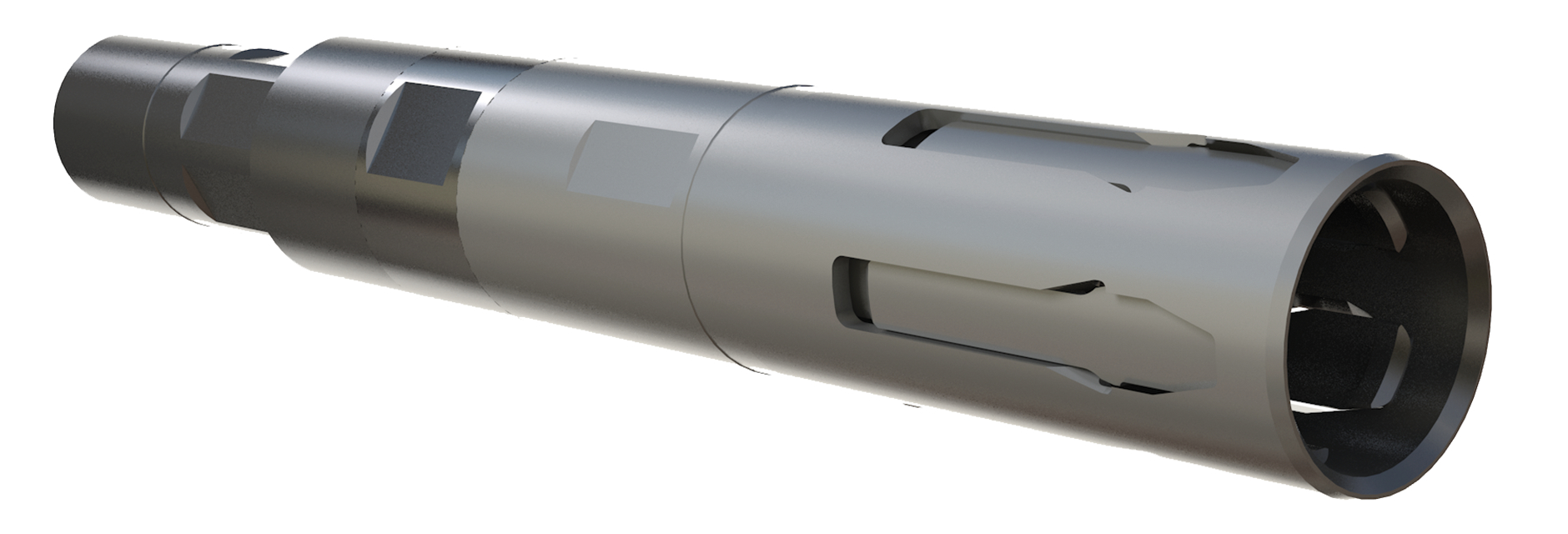

The OD of the Slimline Pulling Tool has been specifically optimised to pass through the majority of No-Go nipple profiles whilst being able to maintain maximum strength through the assembly. The LiMAR® Slimline Pulling Tool is operated by setting down weight to engage the external fish neck. If the device cannot be recovered, setting down weight and increasing the coil flow rate will activate the core piston allowing the pulling tool to disengage from the external fish neck.
TOOL APPLICATIONS:
Recovery of down hole devices with standard size fishing necks
DESIGN FEATURES & BENEFITS:
Minimal components including one piece collet design
No requirement for pawls or small, hard-to-install parts
Slim running OD without compromising strength
Interchangeable orifice nozzles
No shear pin required, offering unlimited tool functions
Simplistic, ergonomic design for rapid redress
Optional LiMAR® Bell Guide Housings available
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Pin Punch Slot for simple release at surface
Assembly Part No. Minimum OD To Engage Fish Neck
165-1500-XXX-RX 1.687" 1.187"
165-2000-XXX-RX 1.765" 1.375"
165-2500-XXX-RX 2.180" 1.750"
165-3000-XXX-RX 2.720" 2.312"
165-3500-XXX-RX 3.115" 2.750"
165-4000-XXX-RX 3.600" 3.125"
