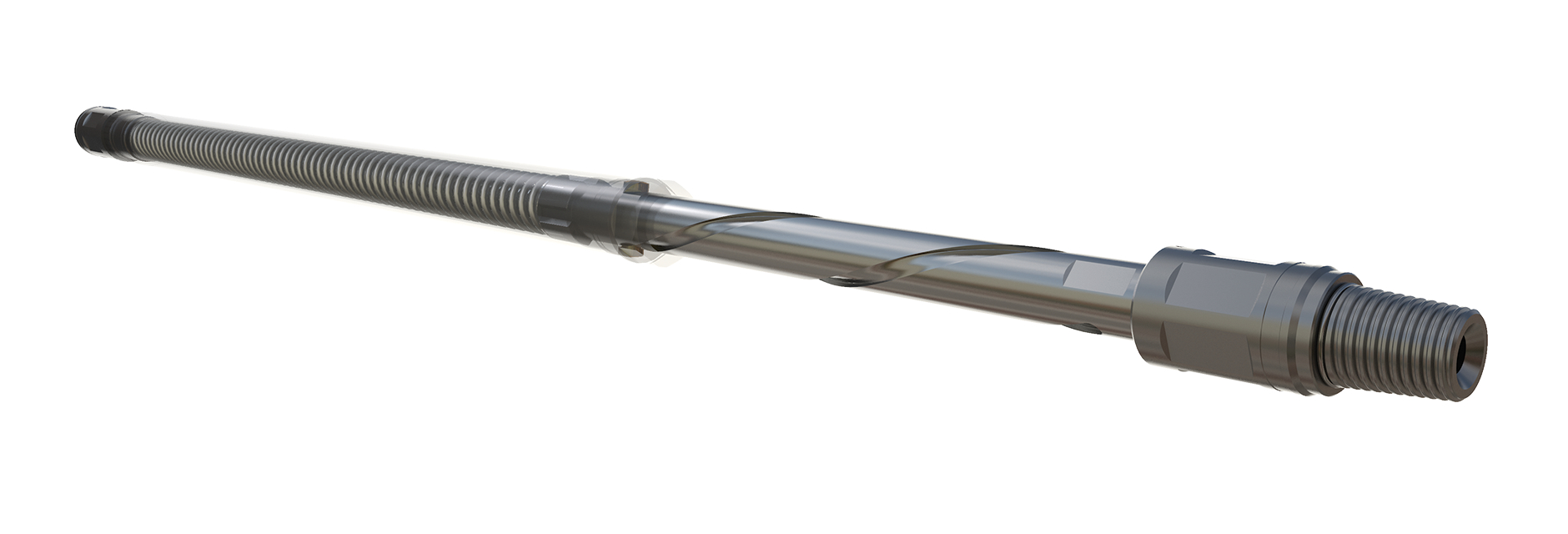

The tool features a helically machined mandrel, which under set down weight allows the lower sub of the tool to rotate making the tool ideal for kicking off from well-bore obstructions, ledges in open holes or rotating over-shots onto fish.When reducing set down weight the tool strokes and rotates back to the starting position. When used in fishing or retrieval operations, it is recommended to utilise the LiMAR® Torque Limiter in conjunction with the Driver to prevent torque build up in the tool string , should the fish be lodged and unable to rotate during retrieval.
TOOL APPLICATIONS:
Applications where BHA entry is impeded by steps of ID changes within the completion and fishing operations where rotation is required
DESIGN FEATURES & BENEFITS:
Flo Thru capability to allow operation of BHA components below
Thru Bore designed for use with drop ball type assembly subs
Designed to maximize tensile loading and functionality in fishing operations
Available in a range of sizes to suit industry standard Coiled Tubing sizes
Corrosion resistant materials
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Make-up Length
252-1689-XXX-R0 1.689" 50.1"
252-2125-XXX-R0 2.125" 54.7"
252-2875-XXX-R0 2.875" 60.3"
