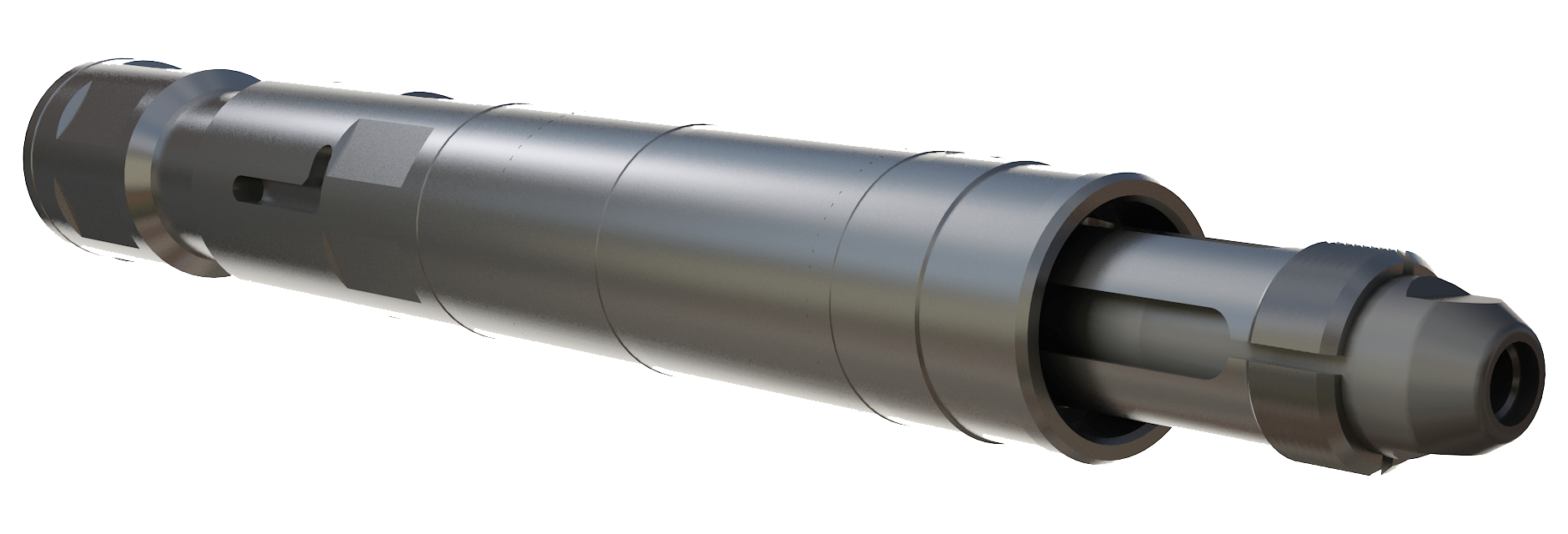

The Flo-Release Spear is operated by setting down weight to engage the fish. If the device cannot be recovered the Spear can be released by setting down weight and increasing the coil flow rate to activate the core piston and allow the Spear to disengage from the fish. Incrementally sized slips can be selected to suit the inside diameter of the fish whilst the adjustable sleeve feature of the Sleeve can be altered to suit the reach required to engage the fish.
TOOL APPLICATIONS:
Recovery of items with damaged or missing internal fish necks
DESIGN FEATURES & BENEFITS:
Interchangeable slips
No shear pin required, offering unlimited tool functions
Simplistic, ergonomic design for rapid redress
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
‘J’ Slot feature for simple release at surface
Adjustable reach sleeve to alter fish engagement point
Interchangeable orifice nozzles available
Assembly Part No. Minimum OD Slip Range Make up Length
115-1780-XXX-RX 1.780" 1.062" - 1.562" 23.27"
115-2180-XXX-RX 2.180" 1.250" - 1.937" 22.09"
115-2720-XXX-RX 2.720" 1.625" - 2.687" 22.97"
115-3500-XXX-RX 3.500" 2.062" - 3.437" 23.39"
115-4500-XXX-RX 4.500" 3.500" - 4.375" 23.39"
