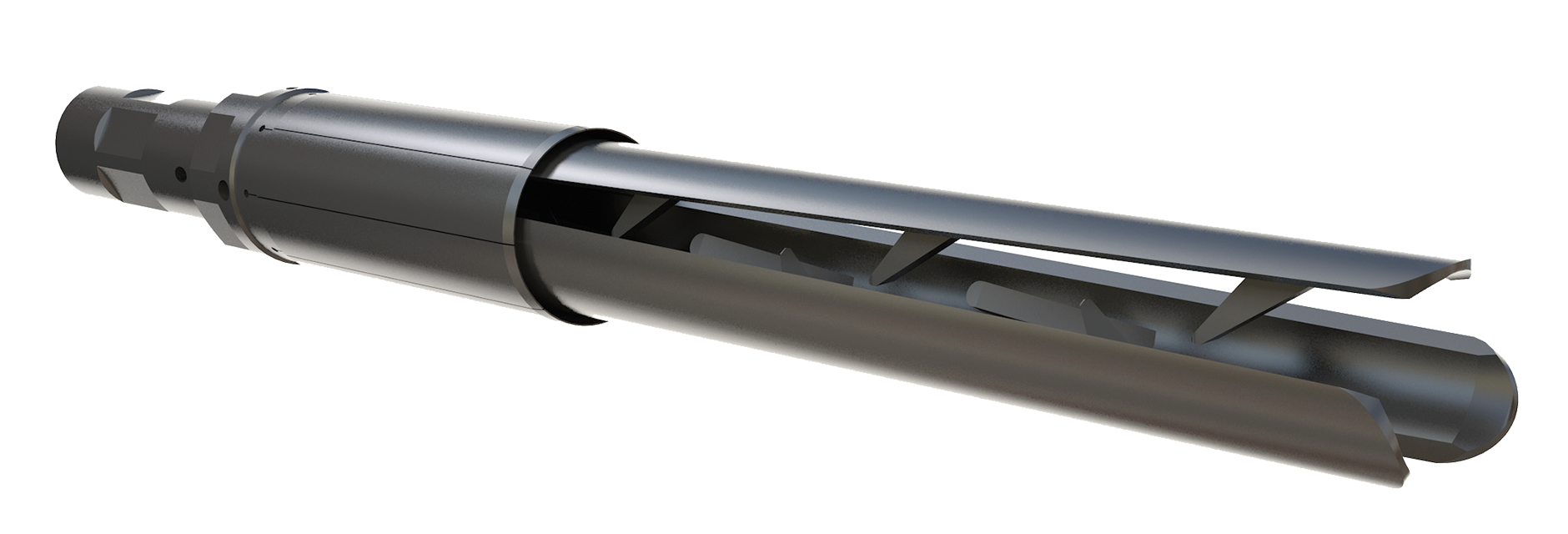

FLO-THRU ADJUSTABLE WIRE FINDER GRAB

Limar Oil Tools

Wireline tools

The finder finger OD can be altered by simply rotating the adjustable finder skirt over the tapered main body. The finder skirt is then locked in to place at the desired running OD to suit the well geometry.The unique main body design provides extensive options of tool configuration. The interchangeable grab arms can be removed and the tool can be run solely as a wire finder to locate and ball up the top of the wire. Incorporating a ported lead impression block, magnet or centre spear further extends the operating envelope of this unique system.

TOOL APPLICATIONS:
For locating and retrieving parted wireline back to surface

DESIGN FEATURES & BENEFITS:
Adjustable Finder Fingers to suit varied tubing ID’s / restrictions
Removable 2, 3 or 4 pronged grab arms options
Multiple configurations
Inventory Reduction
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. To Suit Tubing Size Adjustment Range Prong Grab Arm Options
188-2375-X-XXX-RX 2-3/8" 1.750" - 1.992" 2
188-2875-X-XXX-RX 2-7/8" 2.200" - 2.441" 2 or 3
188-3500-X-XXX-RX 3-1/2" 2.720" - 2.992" 2 or 3
188-4000-X-XXX-RX 4" 3.310" - 3.548" 2 or 3
188-4500-X-XXX-RX 4-1/2" 3.600" - 3.992" 2, 3 or 4
188-5000-X-XXX-RX 5" 3.800” - 4.330” 2, 3 or 4
188-5500-X-XXX-RX 5-1/2" 4.530" - 4.904" 2, 3 or 4
188-7000-X-XXX-RX 7" 5.720" - 6.184" 2, 3 or 4
