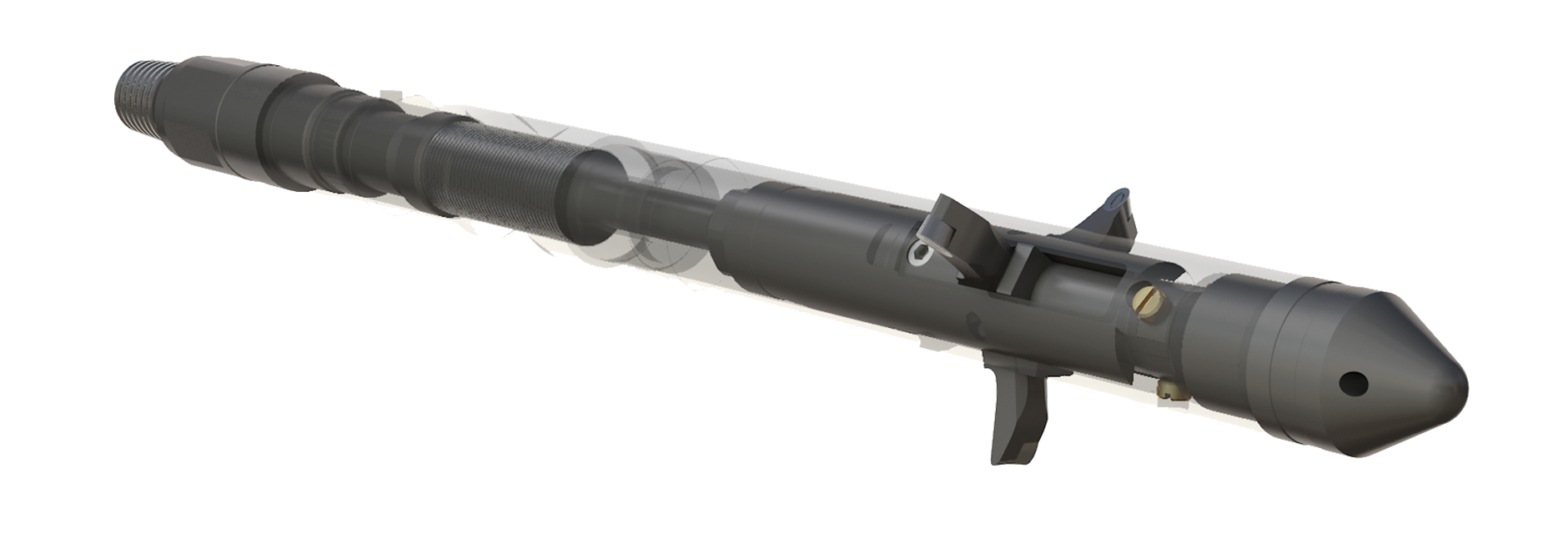

In order to retrieve or drop tubulars into the wellborn the Flo Activated Tubing Cutter is deployed on a motor. Typically the BHA would be anchored in position, as flow rate is increased and the motor begins to rotate, the carbide dressed knives in the tool will expand into the tubular wall. Increased flow rate and RPM continue to force the knives out further into the tubing wall, creating a clean and efficient cut. On completion and as flow rate is reduced the knives return to the collapsed position and are retained for return to surface.
TOOL APPLICATIONS:
Severing Tubulars in fishing, pipe recovery and abandonment operations, a safe and cost effective alternative to explosives
DESIGN FEATURES & BENEFITS:
Robust knife design featuring abrasion resistant carbide inserts
Knives fully retained within tool OD
Flo-activated disc spring mechanism
Emergency shear release feature
Interchangeable nozzles orientated to clean and cool knives during cut
Triple bladed design to increase stability and centralisation
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break out
Connections to suit customer requirements
Assembly Part No. Actual OD Standard Range
274-1687-XXX-RX 1.687" 2.87"- 3.50"
274-2125-XXX-RX 2.125" 3.50"- 5.00"
274-2875-XXX-RX 2.875" 4.50"- 7.00"
274-3125-XXX-RX 3.125" 4.50"- 7.00"
