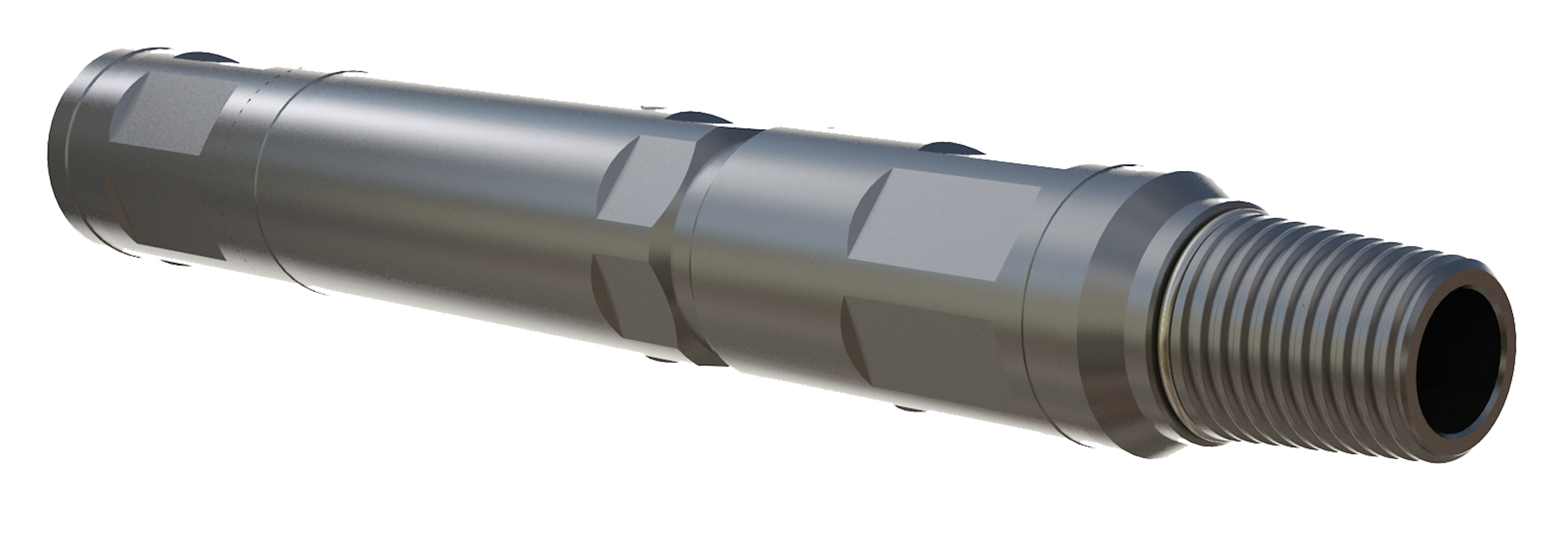

The Flo-Thru Swivel Joint allows the lower BHA to be clamped stationary and connected to the upper BHA without rotation being applied to either section.
TOOL APPLICATIONS:
To allow the BHA to rotate freely under load and eliminate torque build-up
DESIGN FEATURES & BENEFITS:
Supplied in industry standard OD’s
Hard wearing phosphor bronze bushings to enhance tool rotation and prolong working life
Service port for injecting lubricant
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Corrosion resistant materials
Assembly Part No. Actual OD Maximum ID Make up Length
145-1750-XXX-RX 1.750" 0.681" 13.50"
145-2125-XXX-RX 2.125" 1.000" 14.00"
145-2875-XXX-RX 2.875" 1.437" 15.00"
