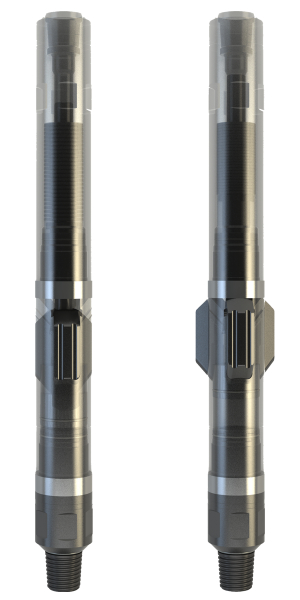

Increased flow rate and internal pressure cause the solid centraliser blades to expand, generating sufficient force to lift the heaviest of CT BHA’s from the low side, thus making the tool ideal for use in fishing operations within liners or casing strings below the tubing shoe.
TOOL APPLICATIONS:
Centralising a Coiled Tubing BHA in large bore completions with
restrictions above, ideal for lifting heavy BHA’s.
DESIGN FEATURES & BENEFITS:
Flo-thru mandrel for running in conjunction with flo-activated tools
Significant force produced when activated
Single piece, solid blade design to increase strength and wear resistance
Optional effective OD’s to suit customer requirments
Interchangeable flo-nozzles
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Assembly Part No. Actual OD Standard Range
286-1687-XXX-RX 1.687" 2.460"
286-2125-XXX-RX 2.125" 3.070"
286-2875-XXX-RX 2.875" 4.190"
286-3125-XXX-RX 3.125" 4.630"
286-3625-XXX-RX 3.625" 5.250"
