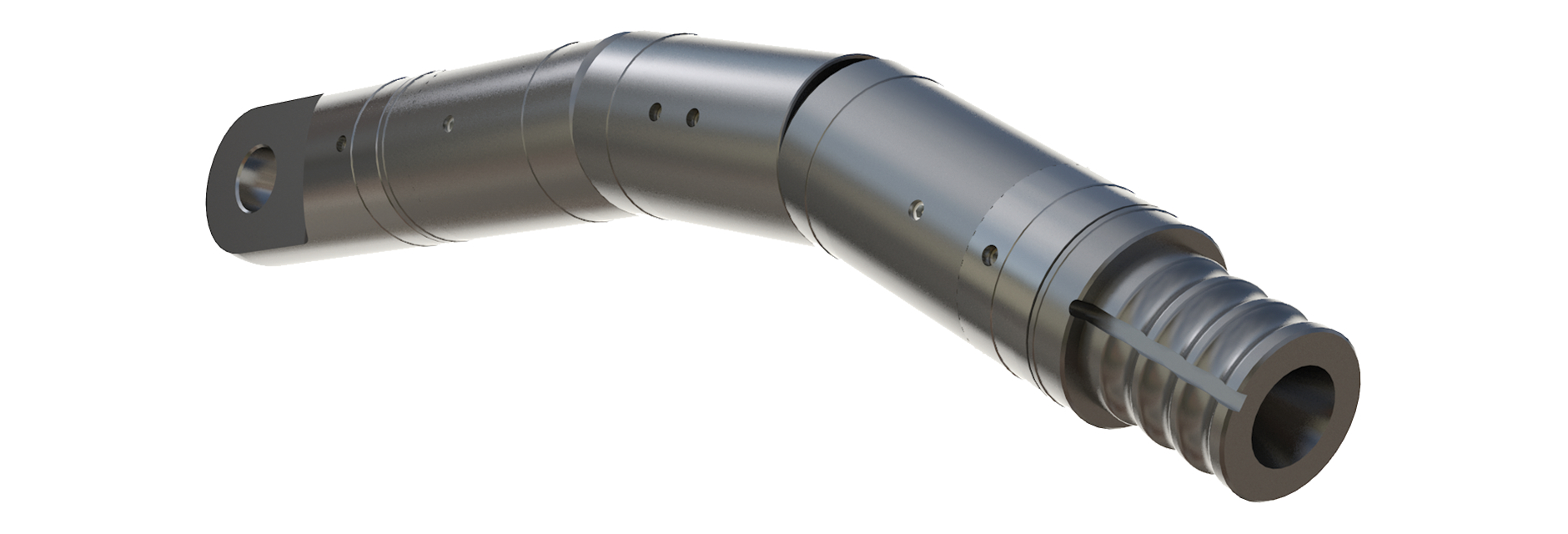

The tool features a double knuckle joint which is capable of bending to a radius of approximately 26" ensuring that even with the shortest goosenecks the tool can safely conform to the radius without any excessive sideward loading.
As a means of quickly and safely connecting to the Coiled Tubing, the surface handling tool includes a grooved roll-on connection which allows the connector to be installed without the need to remove the weld seam from the Coiled Tubing.
TOOL APPLICATIONS:
To provide a quick and safe connection to the Coiled Tubing during surface handling operations
DESIGN FEATURES & BENEFITS:
Available in a range of sizes to suit industry standard CT string OD’s
10 degree deflection angle from centre line
Extremely small bend radius, compatible with all gooseneck sizes
Thru bore to allow string displacement
Sealing ball joint
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Corrosion resistant materials
Assembly Part No. Actual OD Make up Length
196-1500-XXXX-RX 1.500" 15.7"
196-1750-XXXX-RX 1.750" 15.7"
196-2000-XXXX-RX 2.000" 15.7"
196-2375-XXXX-RX 2.375" 16.3"
196-2875-XXXX-RX 2.875" 18.0"
As a means of quickly and safely connecting to the Coiled Tubing, the surface handling tool includes a grooved roll-on connection which allows the connector to be installed without the need to remove the weld seam from the Coiled Tubing.
TOOL APPLICATIONS:
To provide a quick and safe connection to the Coiled Tubing during surface handling operations
DESIGN FEATURES & BENEFITS:
Available in a range of sizes to suit industry standard CT string OD’s
10 degree deflection angle from centre line
Extremely small bend radius, compatible with all gooseneck sizes
Thru bore to allow string displacement
Sealing ball joint
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Corrosion resistant materials
Assembly Part No. Actual OD Make up Length
196-1500-XXXX-RX 1.500" 15.7"
196-1750-XXXX-RX 1.750" 15.7"
196-2000-XXXX-RX 2.000" 15.7"
196-2375-XXXX-RX 2.375" 16.3"
196-2875-XXXX-RX 2.875" 18.0"
