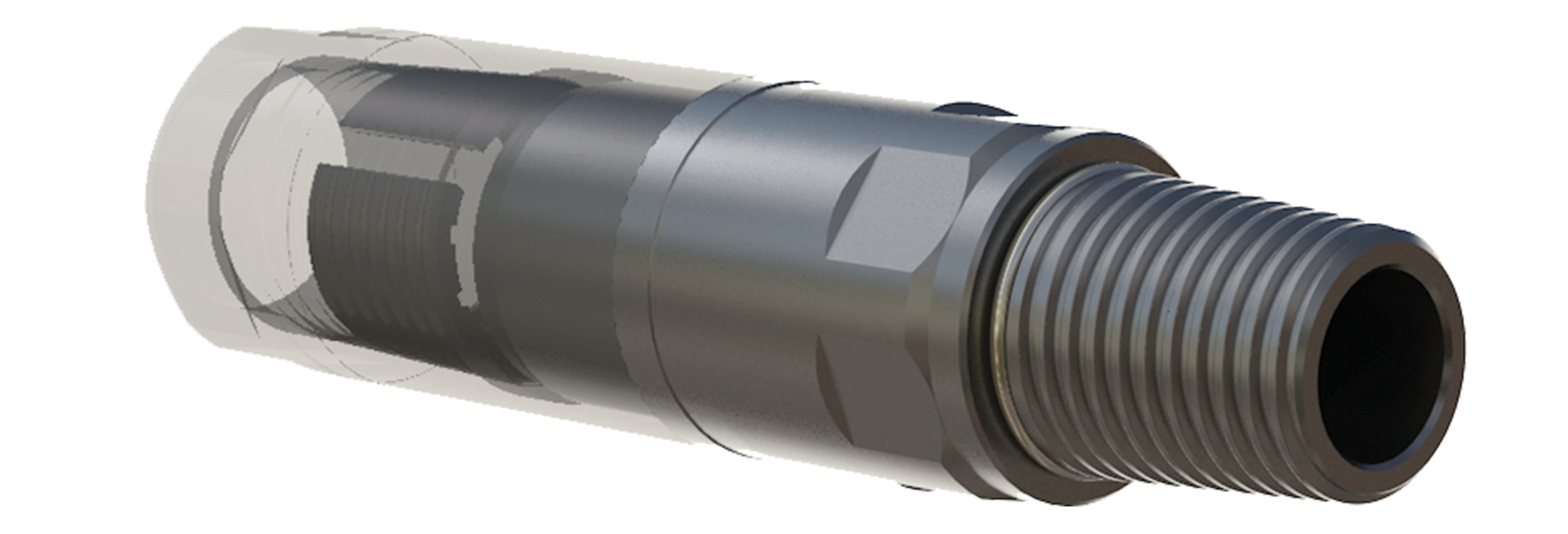

The External Slip Connector design provides a simple but effective high torque-thru connection to the Coil, making it ideally suited for operations such as milling. The connector is also fitted with o-ring seals & back-up rings making it suitable for high pressure applications.
TOOL APPLICATIONS:
Connecting interface between the Coiled Tubing and BHA
Ideal for use during torque-thru applications such as milling operations
DESIGN FEATURES & BENEFITS:
Superior strength & torque connection
Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
Slim running OD
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant materialsAssembly Part No. To Suit CT Minimum OD Make up Length
132-1000-XXX-RX 1.000" 1.687" 7.38"
132-1250-XXX-RX 1.250" 1.875" 7.91"
132-1500-XXX-RX 1.500" 2.125" 7.75"
132-1750-XXX-RX 1.750" 2.375" 8.14"
132-2000-XXX-RX 2.000" 2.750" 8.28"
132-2375-XXX-RX 2.375" 3.125" 8.28"
