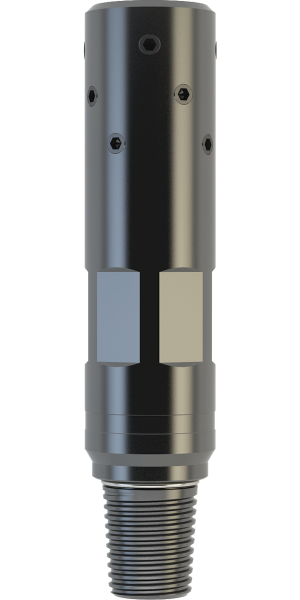

Locking grub screws are inserted and tightened through the connector body into recessed profiles in the Coiled Tubing OD. The profiles are pre-formed using the LiMAR® Grub Screw Connector Assembly Tool to dimple the tubing wall prior to installing the connector onto the coiled tubing. The Assembly Tool also incorporates a slide hammer feature for safely removing the connector after use.
TOOL APPLICATIONS:
Connecting interface between the Coiled Tubing and BHA
Ideal for use during torque-thru applications such as milling operations
DESIGN FEATURES & BENEFITS:
Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
Dual internal seals
Slim running OD
Dual purpose Assembly / Disassembly tool
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant materials
Assembly Part No. To Suit CT Minimum OD Make up Length
127-1500-XXX-RX 1.500" 2.000" 7.31"
127-1750-XXX-RX 1.750" 2.250" 8.00"
127-2000-XXX-RX 2.000" 2.500" 8.00"
127-2375-XXX-RX 2.375" 2.875" 7.25"
127-2875-XXX-RX 2.875" 3.375" 7.25"
TOOL APPLICATIONS:
Connecting interface between the Coiled Tubing and BHA
Ideal for use during torque-thru applications such as milling operations
DESIGN FEATURES & BENEFITS:
Available in a range of sizes to suit industry standard Coiled Tubing diameters and BHA’s
Dual internal seals
Slim running OD
Dual purpose Assembly / Disassembly tool
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant materials
Assembly Part No. To Suit CT Minimum OD Make up Length
127-1500-XXX-RX 1.500" 2.000" 7.31"
127-1750-XXX-RX 1.750" 2.250" 8.00"
127-2000-XXX-RX 2.000" 2.500" 8.00"
127-2375-XXX-RX 2.375" 2.875" 7.25"
127-2875-XXX-RX 2.875" 3.375" 7.25"
