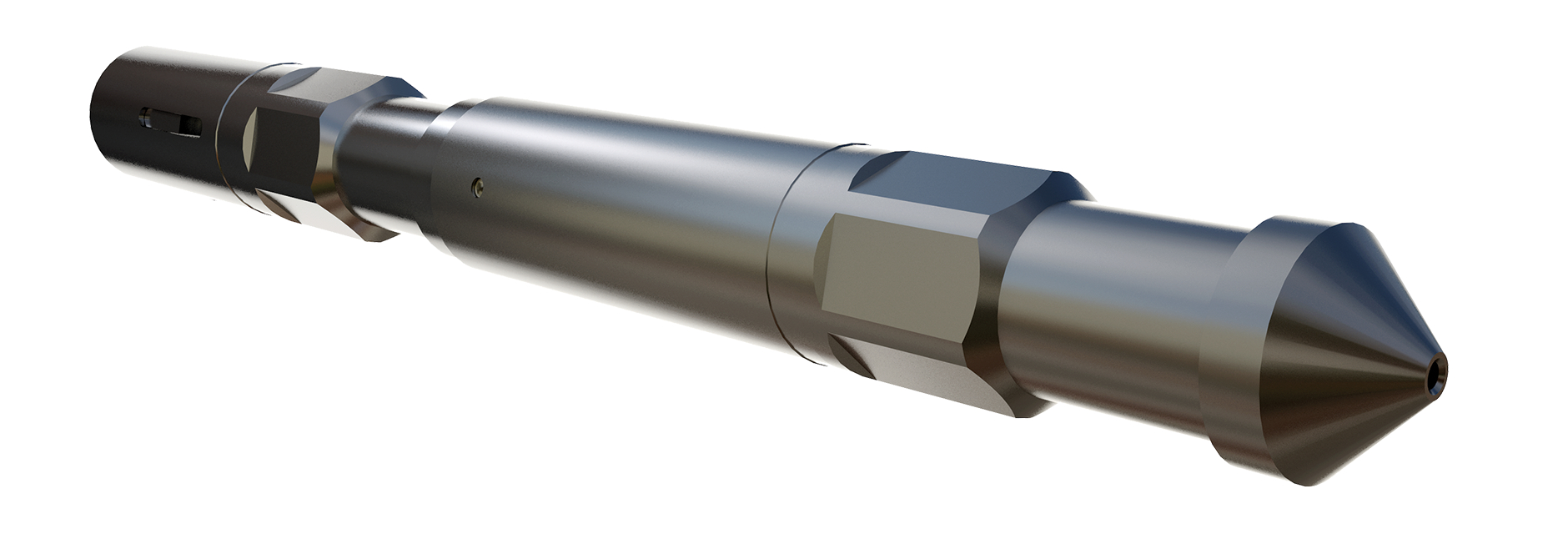

SLICKLINE ROPE SOCKET

Limar Oil Tools

AA New Items

A pear drop & sleeve assembly provides and
maintains a reliable grip to the wire especially when under load during heavy jarring operations.
TOOL APPLICATIONS:
For use with slickline to enable a reliable attachment to the toolstring
DESIGN FEATURES & BENEFITS:
To suit up to 0.160” OD slickline
Available in all standard toolstring OD’s
Connection options to suit customer requirements
Integral LiMAR® Swivel options available
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Wire Size Make up Length
1002-1250-XXXX-XXX-RX 1.250" 1.187" Optional up to 0.125" 12.00" (LQK)
1002-1500-XXXX-XXX-RX 1.500" 1.375" Optional up to 0.160" 14.71" (LQK)
1002-1750-XXXX-XXX-RX 1.750" 1.375" Optional up to 0.160" 14.71" (LQK)
1002-1875-XXXX-XXX-RX 1.875" 1.750" Optional up to 0.160" 14.94" (LQK)
1002-2125-XXXX-XXX-RX 2.125" 1.750" Optional up to 0.160" 15.77" (LQK)
1002-2500-XXXX-XXX-RX 2.500" 2.313" Optional up to 0.160" 17.79" (LQK)
