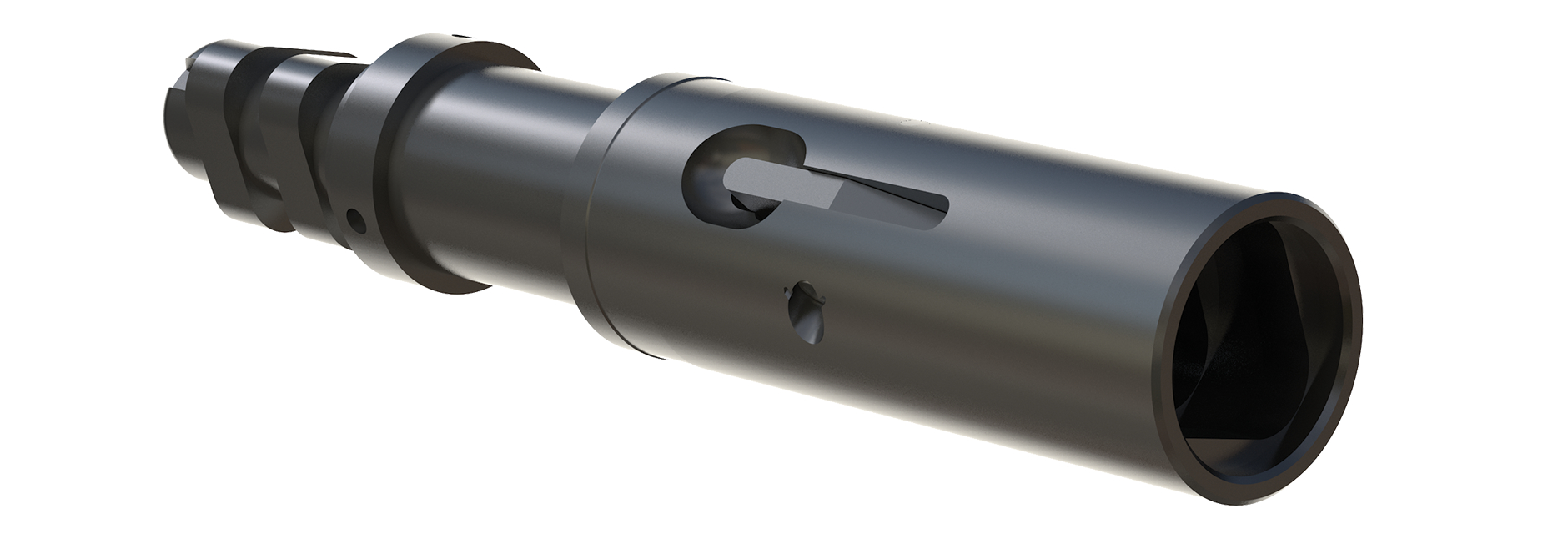

The Tri-QK male is first aligned & inserted into the Tri-QK female, depressing the Locking Plate in the female connection. The connection is then rotated 120 degrees to align the Locking Plate with the slot in the female connection end. This prevents the connection from rotating.
For disassembly, the Locking Plate can be depressed by hand and the connections turned to re-align for separation. Once the profiles are aligned, the Tri-QK connections can be safely separated.
TOOL APPLICATIONS:
Used as a safe, fast and efficient method of connecting toolstring components together without the use of pipe wrenches
DESIGN FEATURES & BENEFITS:
Available in all nominal toolstring sizes
100% compatible with other manufacturers’ Quick Lock Connections
Sour service Spring & Pivot Pin for enhanced performance
LiMAR® Tri-QK vs SUCKER ROD:
SAFE:
Reduced risk of injury during use
Reduced exposure to potential injury
Zero risk of injury from pipe wrench use
RELIABLE:
Will not ‘back-off’ down hole
Minimal working parts
Stronger
COST EFFECTIVE:
Longer working life
Dramatic time saving in operation
Ease of redress with no complex parts
Assembly Part No. Tri-QK Nominal OD Actual OD Fish Neck Male Connection Code Female Connection Code
1008-XXXM-XXXF-RX 1.500" 1.500" 1.375" 176M 176F
1008-XXXM-XXXF-RX 1.875" 1.875" 1.750" 177M 177F
1008-XXXM-XXXF-RX 1.875" 2.125" 1.750" 177M 177F
1008-XXXM-XXXF-RX 2.500" 2.500" 2.312" 178M 178F
For disassembly, the Locking Plate can be depressed by hand and the connections turned to re-align for separation. Once the profiles are aligned, the Tri-QK connections can be safely separated.
TOOL APPLICATIONS:
Used as a safe, fast and efficient method of connecting toolstring components together without the use of pipe wrenches
DESIGN FEATURES & BENEFITS:
Available in all nominal toolstring sizes
100% compatible with other manufacturers’ Quick Lock Connections
Sour service Spring & Pivot Pin for enhanced performance
LiMAR® Tri-QK vs SUCKER ROD:
SAFE:
Reduced risk of injury during use
Reduced exposure to potential injury
Zero risk of injury from pipe wrench use
RELIABLE:
Will not ‘back-off’ down hole
Minimal working parts
Stronger
COST EFFECTIVE:
Longer working life
Dramatic time saving in operation
Ease of redress with no complex parts
Assembly Part No. Tri-QK Nominal OD Actual OD Fish Neck Male Connection Code Female Connection Code
1008-XXXM-XXXF-RX 1.500" 1.500" 1.375" 176M 176F
1008-XXXM-XXXF-RX 1.875" 1.875" 1.750" 177M 177F
1008-XXXM-XXXF-RX 1.875" 2.125" 1.750" 177M 177F
1008-XXXM-XXXF-RX 2.500" 2.500" 2.312" 178M 178F
