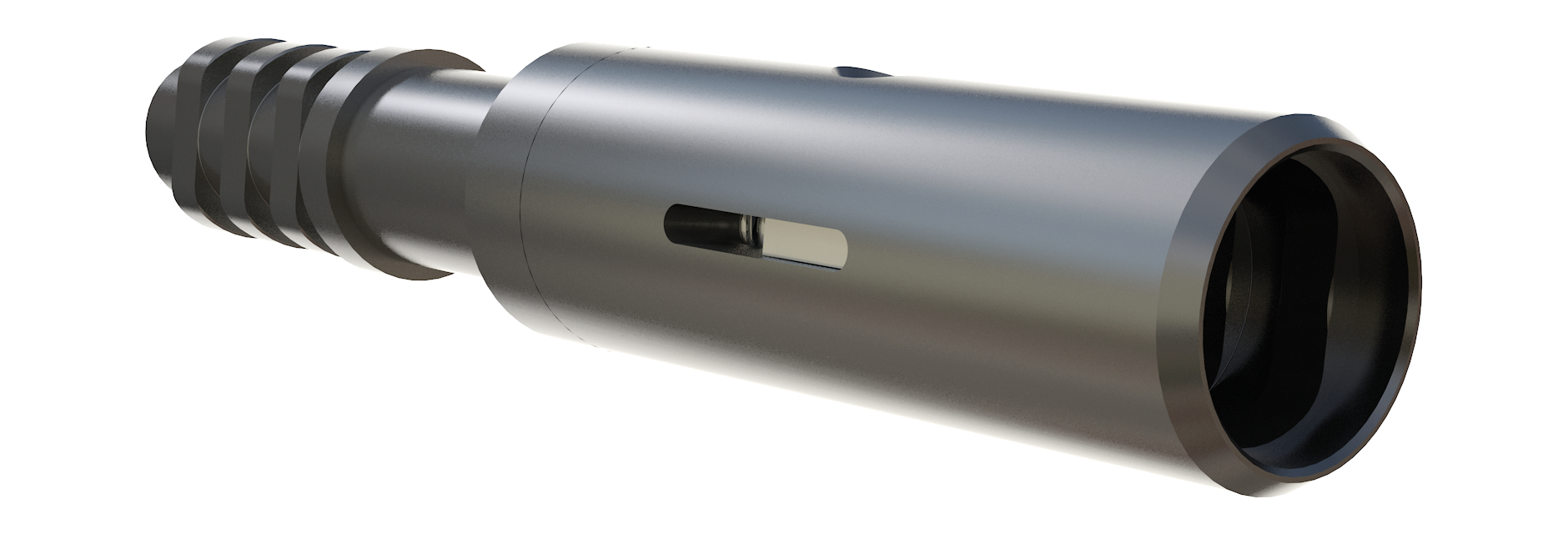

The LQK-HD male is first aligned & inserted into the LQK-HD female. The connection is then rotated 90 degrees to allow the spring loaded locking plate to drop into a slotted profile at the top of the male connection end. This prevents the connection from rotating in either direction. For disassembly, a pin punch is inserted through the locking plate via an access hole in the female connection. Levering the pin punch raises the locking plate from the slot to allow the connection to rotate 90 degrees. Once the profile is aligned both LQK-HD connections can be safely separated.
TOOL APPLICATIONS:
Used as a heavy duty, safe, fast and efficient method of connecting toolstring components together without the use of pipe wrenches
DESIGN FEATURES & BENEFITS:
33% stronger than existing 1-7/8” & 2-1/2" Quick Lock Connections. Ideal for use with LiMAR® 2.125” & 2.688" Jar range at highest setting
Titanium Locking Plate offering a fivefold increase in strength along with a 40% comparative weight reduction of existing plates
The LQK-HD Male Connection incorporates the industry standard 1.750” & 2.313" OD fish neck which allows for recovery with existing market pulling tools
Extended lateral support sleeve on female connection envelopes the fish neck on the male connection, protecting it whilst reducing lateral force and sidewards movement on connection during jarring
Extra Strong Elgiloy Spring. Combining the light weight Titanium Locking Plate and Spring means the connection can sustain 4 times the impact of the original design, before the same movement is seen
LiMAR® LQK-HD vs SUCKER ROD:
SAFE
Reduced risk of injury during use
Reduced exposure to potential injury
Zero risk of injury from pipe wrench use
RELIABLE
Will not ‘back-off’ down hole
Minimal working parts
Stronger
COST EFFECTIVE
Longer working life
Dramatic time saving in operation
Ease of redress with no complex parts
Assembly Part No. LQK HD Nominal OD Actual OD Fish Neck Male Connection Code Female Connection Code
1008-XXXM-XXXF-RX 2-1/8" 2.125" 1.750" 169M 169F
1008-XXXM-XXXF-RX 2-11/16" 2.688" 2.313" 173M 173F
