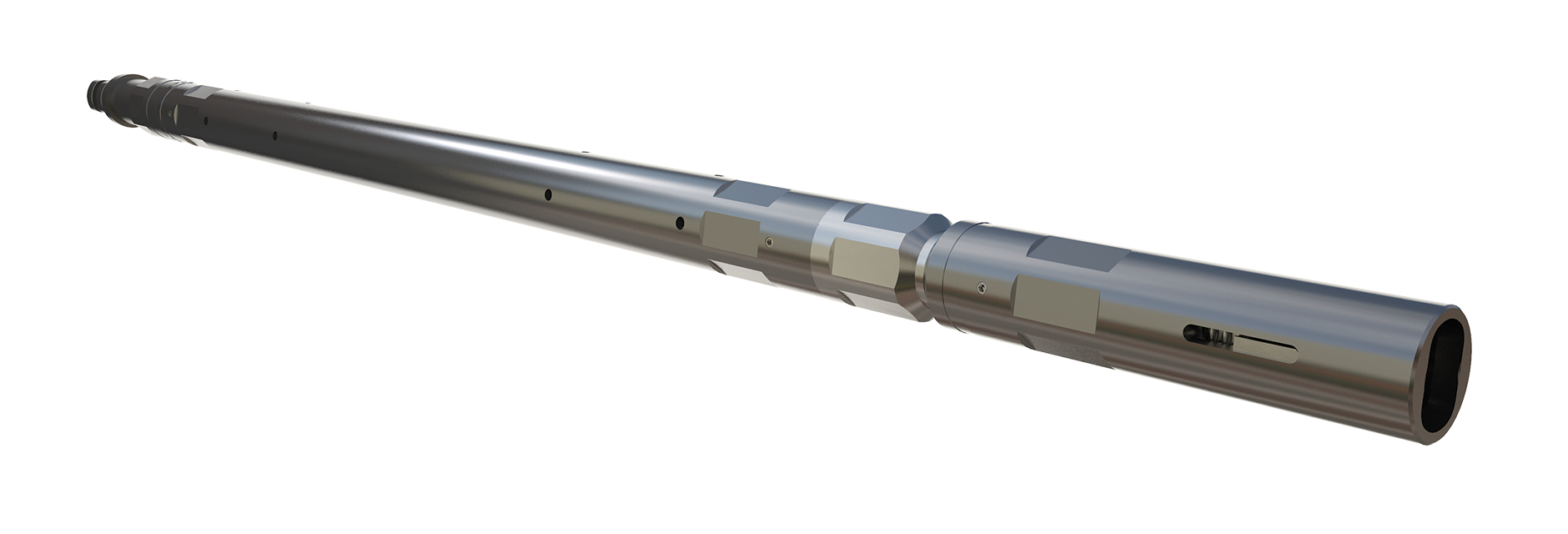

Typically used in fishing scenarios where parted wire is present within the tubing, the LiMAR® Tubular Jar can also be used during swabbing operations to bear the high loading or in large ID well bores where mechanical type ‘spang’ jars are prone to scissoring.
TOOL APPLICATIONS:
Typically used during fishing operations where there may be the potential for wire or debris ingress
Ideal for use during swabbing operations to tolerate the high loading seen during swabbing runs
Can be used as the preferred alternative when working in large bore wells to prevent lateral buckling
DESIGN FEATURES & BENEFITS:
Available in industry standard toolstring sizes
Increased mass above jar rod allows for a shorter toolstring
Inverted jar rod options available
Optional jar stroke length
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Jar Stroke Options Make up Length - Closed
1004-1250-XXX-RX 1.250" 1.187" Optional 20" / 24" / 30" 36.26" / 40.26" / 46.26" (LQK)
1004-1500-XXX-RX 1.500" 1.375" Optional 20" / 24" / 30" 36.34" / 40.34" / 46.34" (LQK)
1004-1750-XXX-RX 1.750" 1.375" Optional 20" / 24" / 30" 37.00" / 41.00" / 47.00" (LQK)
1004-1875-XXX-RX 1.875" 1.750" Optional 20" / 24" / 30" 39.00" / 43.00" / 49.00" (LQK)
1004-2125-XXX-RX 2.125" 1.750" Optional 20" / 24" / 30" 39.00" / 43.00" / 49.00" (LQK)
1004-2500-XXX-RX 2.500" 2.313" Optional 20" / 24"/ 30" 41.84" / 45.84" / 49.84" (LQK)
