KNUCKLE JAR

Limar Oil Tools

Wireline tools

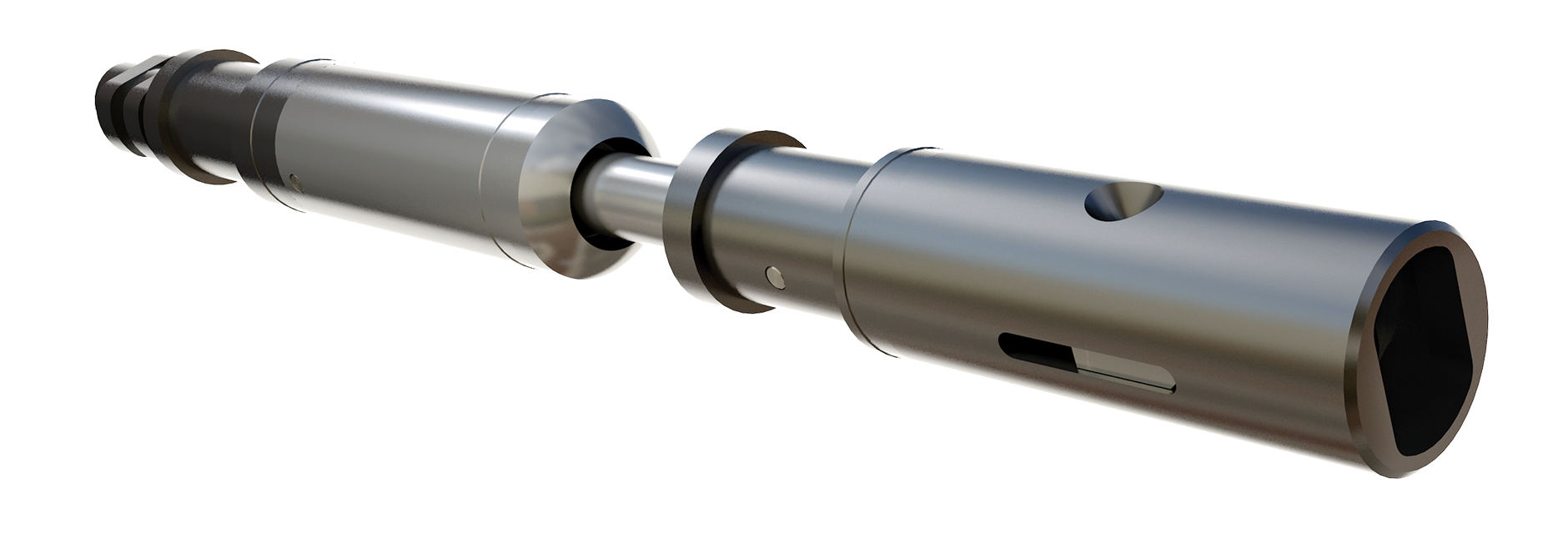

The Knuckle Jar is often used within a toolstring to convey downhole data acquisition tools where a long stroke mechanical type jar may cause damage to the internal components of downhole gauges. Configuring a Knuckle Jar within the toolstring also enables it to pass unrestricted over nipple shoulders, tubing crossovers and other points where a rigid toolstring may encounter difficulty.

TOOL APPLICATIONS:
To provide a point of flexibility and short stroke jarring action within a wireline toolstring

DESIGN FEATURES & BENEFITS:
10 degree deflection angle from centre line
Contingent fish necks on lower components to enable recovery
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Contingent Fish Neck Stroke Make up Length (Closed)
1034-1250-XXX-RX 1.250" 1.187" Optional 1.187" 2" 13.37" (LQK)
1034-1500-XXX-RX 1.500" 1.375" Optional 1.375" 2" 15.17" (LQK)
1034-1750-XXX-RX 1.750" 1.375" Optional 1.375" 2" 15.50" (LQK)
1034-1875-XXX-RX 1.875" 1.750" Optional 1.750" 2" 15.63" (LQK)
1034-2125-XXX-RX 2.125" 1.750" Optional 1.750" 2" 15.88" (LQK)
1034-2500-XXX-RX 2.500" 2.313" Optional 2.313" 2" 20.28" (LQK)
