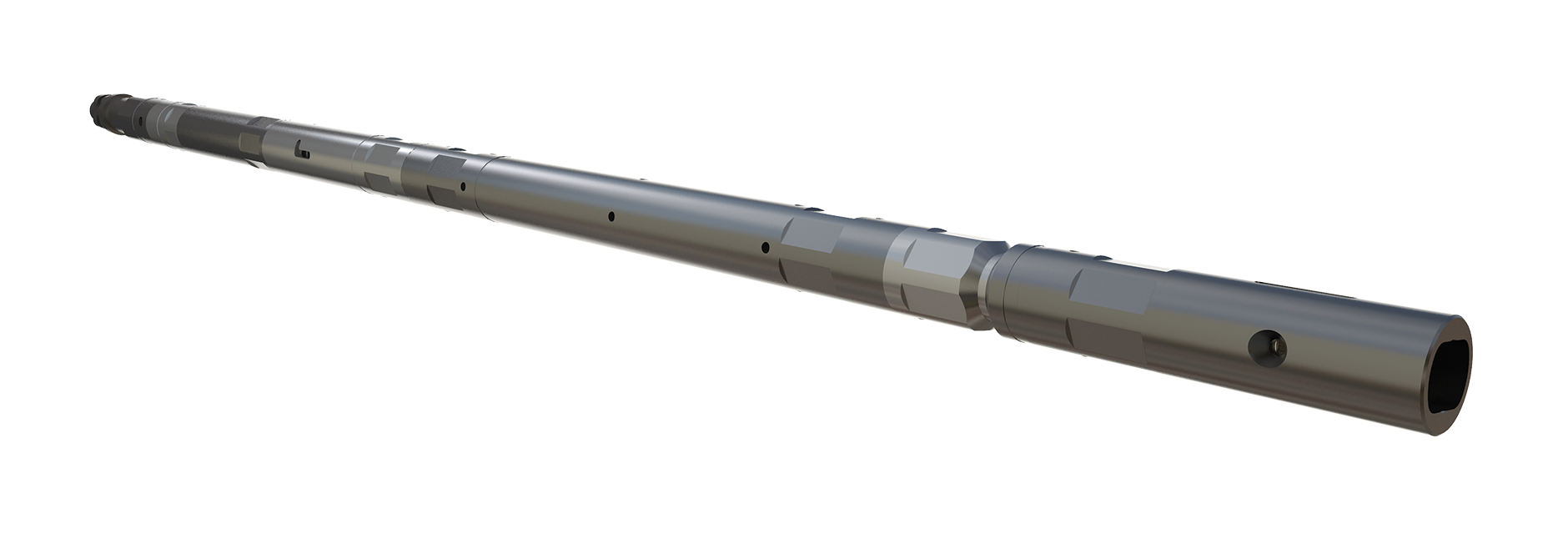

The Jar incorporates harmonised hydraulic and mechanical functions improving reliability and performance in both oil and gas wells. By maintaining an overpull, the Jar will trip and ‘fire’ the toolstring upwards in a rapid motion. The jar is then simply re-cocked by setting down toolstring weight to re-latch the body to the jar rod. Unlike most jars available on the market the jar collet latch mechanism is positioned in the upper section of the jar housing. This makes the jar less prone to failure by the incursion of debris in and around the latch mechanism during utilisation.
TOOL APPLICATIONS:
For controlled, optimum upward jarring during the retrieval of downhole items
DESIGN FEATURES & BENEFITS:
Available in industry standard toolstring sizes
Harmonised hydraulic and mechanical functions improving reliability in oil and gas wells
200, 500 and 1000 grade silicone oil available to control jar release time in varied well temperatures
Unique inverted jar design for improved debris tolerance
Balance piston chamber to limit well pressure effects
Simplistic, ergonomic design for rapid redress
“J” Slot feature for simple and safe jar rod release at surface
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Matched Accelerator Subs available to suit LiMAR® Jar range
Assembly Part No. Actual OD Fish Neck Connection Working Range Jar Stroke Make up Length - Closed
1049-1250-XXX-RX 1.250" 1.187" Optional up to 800lbs 9.81" 47.05" (LQK)
1049-1500-XXX-RX 1.500" 1.375" Optional up to 1100lbs 10.50" 49.52" (LQK)
1049-1750-XXX-RX 1.750" 1.375" Optional up to 3000lbs 12.61" 53.24" (LQK)
1049-1875-XXX-RX 1.875" 1.750" Optional up to 3000lbs 12.61" 54.81" (LQK)
1049-2125-XXX-RX 2.125" 1.750" Optional up to 3000lbs 12.61" 54.51" (LQK)
1049-2500-XXX-RX 2.500" 2.313" Optional up to 7000lbs 14.86" 68.63" (LQK)
TOOL APPLICATIONS:
For controlled, optimum upward jarring during the retrieval of downhole items
DESIGN FEATURES & BENEFITS:
Available in industry standard toolstring sizes
Harmonised hydraulic and mechanical functions improving reliability in oil and gas wells
200, 500 and 1000 grade silicone oil available to control jar release time in varied well temperatures
Unique inverted jar design for improved debris tolerance
Balance piston chamber to limit well pressure effects
Simplistic, ergonomic design for rapid redress
“J” Slot feature for simple and safe jar rod release at surface
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Matched Accelerator Subs available to suit LiMAR® Jar range
Assembly Part No. Actual OD Fish Neck Connection Working Range Jar Stroke Make up Length - Closed
1049-1250-XXX-RX 1.250" 1.187" Optional up to 800lbs 9.81" 47.05" (LQK)
1049-1500-XXX-RX 1.500" 1.375" Optional up to 1100lbs 10.50" 49.52" (LQK)
1049-1750-XXX-RX 1.750" 1.375" Optional up to 3000lbs 12.61" 53.24" (LQK)
1049-1875-XXX-RX 1.875" 1.750" Optional up to 3000lbs 12.61" 54.81" (LQK)
1049-2125-XXX-RX 2.125" 1.750" Optional up to 3000lbs 12.61" 54.51" (LQK)
1049-2500-XXX-RX 2.500" 2.313" Optional up to 7000lbs 14.86" 68.63" (LQK)
