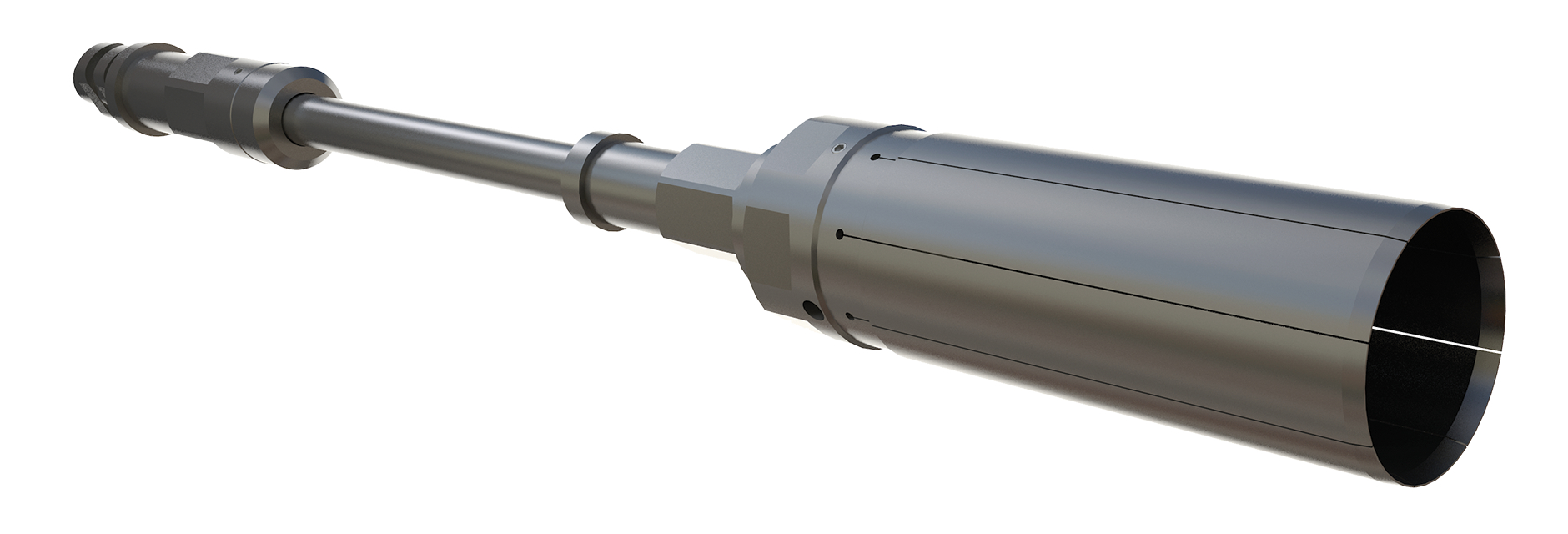

ADJUSTABLE WIRE FINDER RETRIEVER

Limar Oil Tools

AA New Items

The finder finger OD can be altered by simply rotating the adjustable finder skirt over the tapered main body. The finder skirt is then locked in to place at the desired running OD to suit the well geometry. Upon reaching the top of the wire, the flexible design of the finder skirt will guide the parted line into the body of the Finder Retriever. Pulling out of hole at this point will close the mandrel and trap the line firmly within the Finder Retriever, enabling recovery.

TOOL APPLICATIONS:
For locating and retrieving parted wireline in a single run
DESIGN FEATURES & BENEFITS:
Adjustable Finder Fingers to suit varied tubing ID’s / restrictions
Inventory reduction
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. To Suit Tubing Size Adjustment Range Fish Neck Connection Contingent Fish Neck
1026-2375-XXX-RX 2-3/8" 1.750” - 1.992” Optional Optional 1.375"
1026-2875-XXX-RX 2-7/8" 2.200” - 2.441” Optional Optional 1.375"
1026-3500-XXX-RX 3-1/2" 2.720” - 2.992” Optional Optional 1.750"
1026-4000-XXX-RX 4" 3.100” - 3.548” Optional Optional 1.750"
1026-4500-XXX-RX 4-1/2" 3.600” - 3.992” Optional Optional 2.313"
1026-5000-XXX-RX 5" 3.800” - 4.330” Optional Optional 2.313"
1026-5500-XXX-RX 5-1/2" 4.530” - 4.904” Optional Optional 2.313"
1026-7000-XXX-RX 7" 6.000” - 6.375” Optional Optional 2.313"
