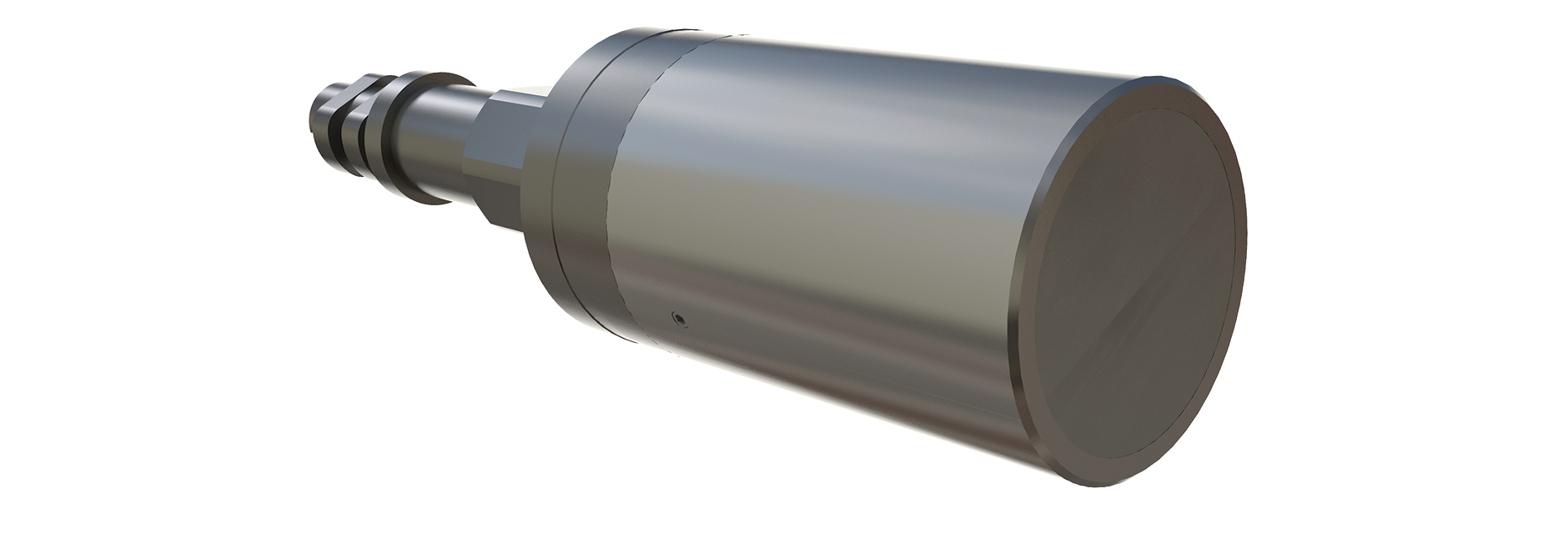

The high strength samarium cobalt magnetic insert is particularly suited for use in high temperature wells where most common rare earth magnets will lose their strength after exposure to heat.
The outer sleeve of the housing is manufactured from non-magnetic stainless steel. This focuses the magnetic flux downwards and guarantees effortless conveyance in the well.
An aluminium protector is supplied as standard with all LiMAR® High Power Magnets for safe surface handling whilst not in use.
DESIGN FEATURES & BENEFITS:
High temperature resistant samarium cobalt magnetic insert
Flat bottom option for optimum strength
Sprung Sleeve option for assisting recovery of smaller objects
Available in a range of sizes
Bespoke options available to suit a range of applications
Aluminium protector supplied as standard for safe handling
Stainless steel outer sleeve for ease of conveyance in the well
Connection options to suit customer requirements
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection
1077-1500-XXX-RX 1.500" Optional Optional
1077-1750-XXX-RX 1.750" Optional Optional
1077-2220-XXX-RX 2.220" Optional Optional
1077-2720-XXX-RX 2.720" Optional Optional
1077-3000-XXX-RX 3.000" Optional Optional
1077-3500-XXX-RX 3.500" Optional Optional
1077-4000-XXX-RX 4.000" Optional Optional
1077-4500-XXX-RX 4.500" Optional Optional
1077-5500-XXX-RX 5.500" Optional Optional
