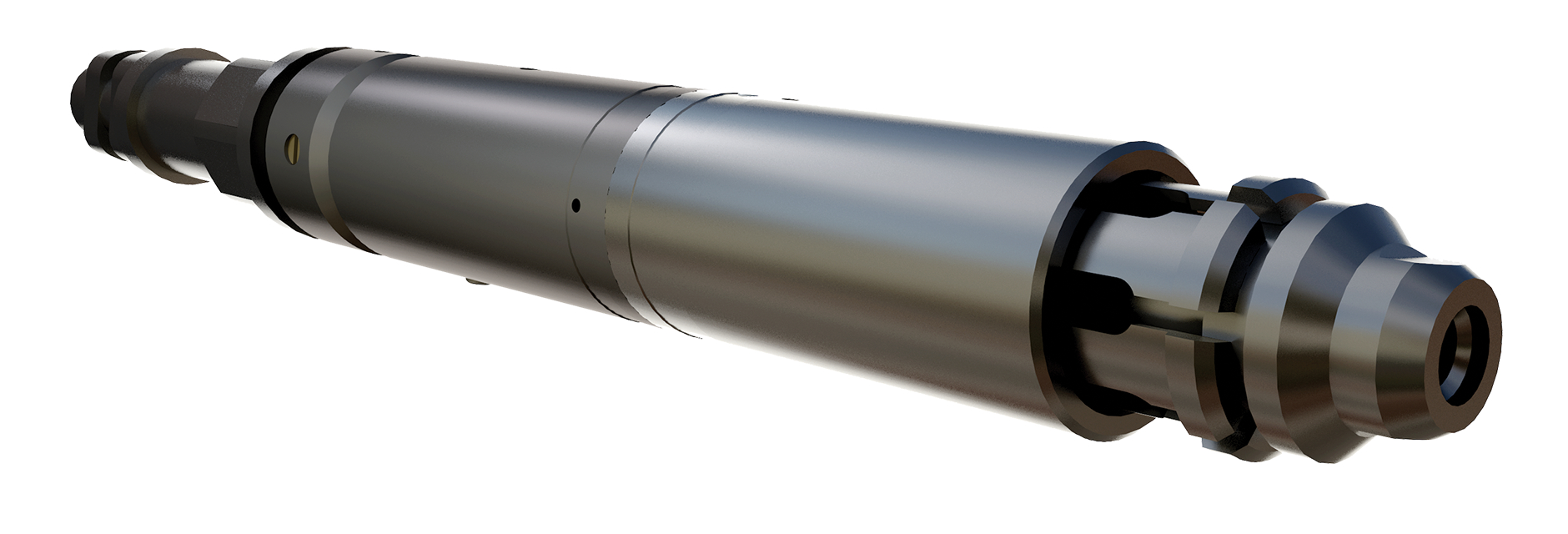

The single piece collet finger design provides an increased contact area between the dogs and the underside of the internal fish neck. This makes the Heavy Duty GS ideal for sustained, heavy jarring applications. The unique LiMAR® locking button feature will ensure that the collet dogs remain retracted during release and disengagement from the internal fish neck. An optional interchangeable collet with serrated dogs can be used for engaging badly scaled internal fish necks.
TOOL APPLICATIONS:
Recovery of items with “Otis” type internal fish necks
Recovery of items with badly scaled internal fish necks
Recovery of items with badly damaged internal fish necks
DESIGN FEATURES & BENEFITS:
Simplistic, ergonomic design for rapid redress
Unique LiMAR® locking button release feature to ensure collet dogs release safely
Supplied in industry standard GS OD’s
One piece collet dog cage with increased contact area between dogs and fish neck
Optional serrated collet dogs available for flared or scaled fish necks
Threaded core to suit industry standard running / pulling accessories
Optional shear screw sizes for operational flexibility
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Nominal OD Actual OD Fish Neck Connection To Engage Fish Neck
1072-2000-XXX-RX 2" 1.780" Optional Optional 1.380"
1072-2500-XXX-RX 2-1/2" 2.220" Optional Optional 1.810"
1072-3000-XXX-RX 3" 2.720" Optional Optional 2.310"
1072-3500-XXX-RX 3-1/2" 3.100" Optional Optional 2.620"
1072-4000-XXX-RX 4" 3.600" Optional Optional 3.120"
1072-5000-XXX-RX 5" 4.500" Optional Optional 4.000"
1072-6000-XXX-RX 6" 5.600" Optional Optional 4.750"
1072-7000-XXX-RX 7" 5.820" Optional Optional 5.000"
TOOL APPLICATIONS:
Recovery of items with “Otis” type internal fish necks
Recovery of items with badly scaled internal fish necks
Recovery of items with badly damaged internal fish necks
DESIGN FEATURES & BENEFITS:
Simplistic, ergonomic design for rapid redress
Unique LiMAR® locking button release feature to ensure collet dogs release safely
Supplied in industry standard GS OD’s
One piece collet dog cage with increased contact area between dogs and fish neck
Optional serrated collet dogs available for flared or scaled fish necks
Threaded core to suit industry standard running / pulling accessories
Optional shear screw sizes for operational flexibility
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Nominal OD Actual OD Fish Neck Connection To Engage Fish Neck
1072-2000-XXX-RX 2" 1.780" Optional Optional 1.380"
1072-2500-XXX-RX 2-1/2" 2.220" Optional Optional 1.810"
1072-3000-XXX-RX 3" 2.720" Optional Optional 2.310"
1072-3500-XXX-RX 3-1/2" 3.100" Optional Optional 2.620"
1072-4000-XXX-RX 4" 3.600" Optional Optional 3.120"
1072-5000-XXX-RX 5" 4.500" Optional Optional 4.000"
1072-6000-XXX-RX 6" 5.600" Optional Optional 4.750"
1072-7000-XXX-RX 7" 5.820" Optional Optional 5.000"
