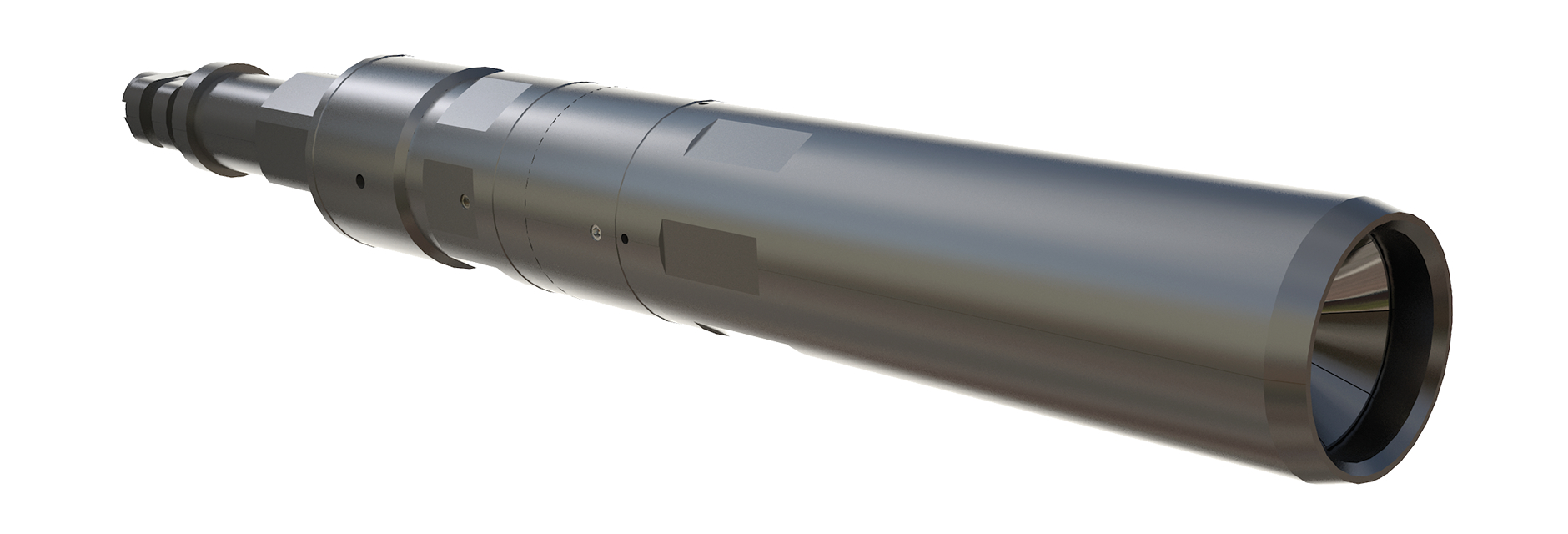

NON-RELEASABLE OVERSHOT

Limar Oil Tools

AA New Items

Incrementally sized grapples can be selected to suit the outside diameter of the fish whilst the adjustable core feature of the Overshot can be altered to suit the reach required to engage the fish. Due to the interchangeable nature between the LiMAR® Releasable and Non-Releasable Overshot versions, the top sub can also be removed and fitted with a releasable type top sub for both running and retrieval.
TOOL APPLICATIONS:
Recovery of items with damaged or missing external fish necks
DESIGN FEATURES & BENEFITS:
Inventory reduction through multi-functional components
Adjustable reach core to alter fish engagement point
Interchangeable top sub for configuring as a releasable version
Interchangeable grapples between releasable and non-releasable versions
Optional external or internal type running necks
Customisable grapples available to suit client requirements
Optional LIMAR® Bell Guide Housings available
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Collet Range
1043-1750-XXX-RX 1.750" Optional Optional 0.437"- 1.375"
1043-2220-XXX-RX 2.220" Optional Optional 0.437"-1.750"
1043-2720-XXX-RX 2.720" Optional Optional 0.437"-2.125"
1043-3220-XXX-RX 3.220" Optional Optional 0.437"-2.687"
1043-3720-XXX-RX 3.720" Optional Optional 0.437"-3.270"
1043-3800-XXX-RX 3.800" Optional Optional 0.437"-3.187"
1043-4500-XXX-RX 4.500" Optional Optional 0.437"-3.500"
