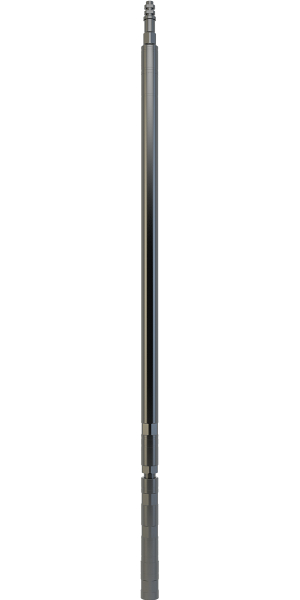

Atmospheric pressure is trapped within the bailer when assembled on surface. When the bailer reaches target depth, downward jarring will shear out the shear pin retained blow out plug.
The rapid flow of the differential pressure, from the well will draw in any surrounding debris into the bailer cylinder. A check valve device prevents the debris from dropping out of the cylinder during recovery back to surface.
TOOL APPLICATIONS:
For recovery of sand and debris from within the well bore
DESIGN FEATURES & BENEFITS:
Optional bailer bottom shoes to suit customer requirements
Ball type check valve assemblies available upon request
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Cylinder Volume
1086-1500-XXX-RX 1.500" Optional Optional 0.25 litre/ft
1086-1875-XXX-RX 1.875" Optional Optional 0.34 litre/ft
1086-2375-XXX-RX 2.375" Optional Optional 0.58 litre/ft
1086-2875-XXX-RX 2.875" Optional Optional 0.83 litre/ft
1086-3500-XXX-RX 3.500" Optional Optional 1.29 litre/ft
