SAND PUMP BAILER - FLAPPER TYPE

Limar Oil Tools

AA New Items

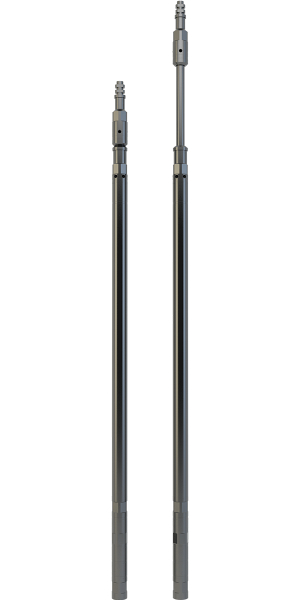

The LiMAR® Sand Pump Bailer incorporates a piston within a cylinder which when stroked upwards, draws the debris into the cylinder chamber. A check valve device prevents the debris from dropping out of the cylinder during recovery back to surface.
TOOL APPLICATIONS:
For recovery of loose sand and debris from within the well bore
DESIGN FEATURES & BENEFITS:
Optional bailer bottom shoes to suit customer requirements
Drive Down Bailer conversion kits available
Extension tubes available for increased capacity
Ball type check valve assemblies available upon request
Connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Actual OD Fish Neck Connection Cylinder Volume Bailer Stroke
1087-1250-XXX-RX 1.250" Optional Optional 0.14 litre/ft 37.59"
1087-1500-XXX-RX 1.500" Optional Optional 0.25 litre/ft 37.28"
1087-1875-XXX-RX 1.875" Optional Optional 0.34 litre/ft 36.76"
1087-2375-XXX-RX 2.375" Optional Optional 0.58 litre/ft 36.36"
1087-2875-XXX-RX 2.875" Optional Optional 0.83 litre/ft 35.58"
1087-3500-XXX-RX 3.500" Optional Optional 1.29 litre/ft 35.88"
