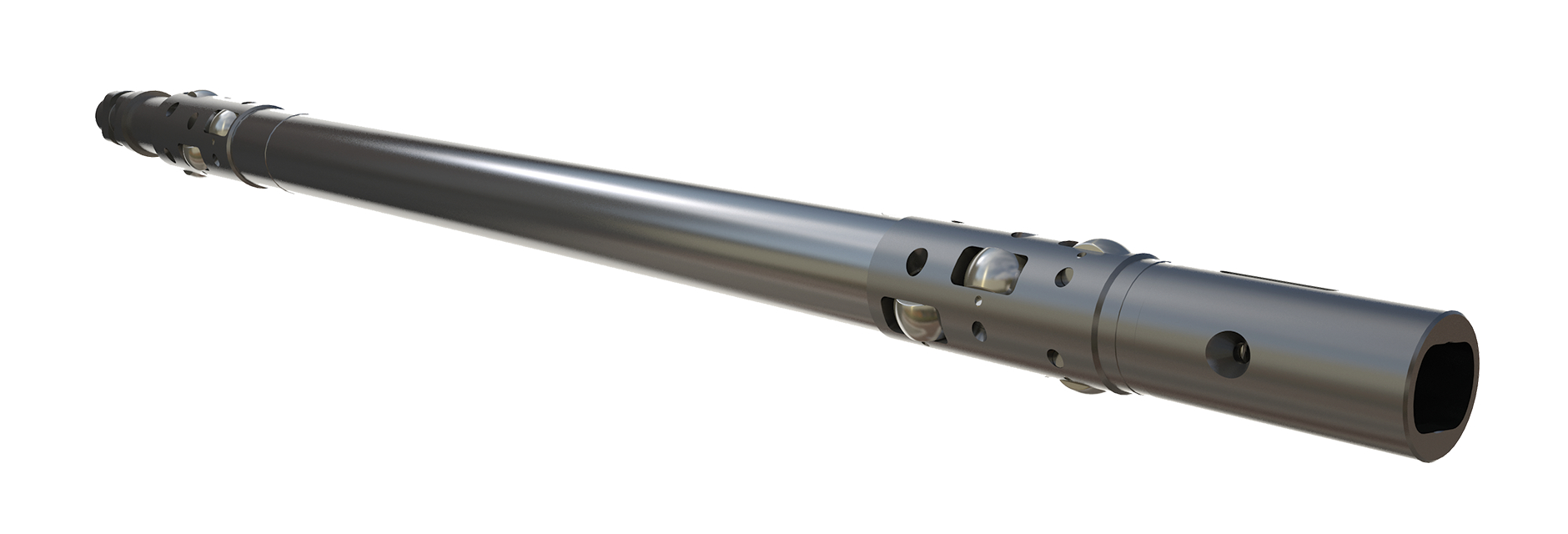

MULTI ROLLER TUNGSTEN STEM

Limar Oil Tools

AA New Items

This is achieved by integrating the LiMAR® Multi Roller Wheel Subs above & below a tungsten-fifilled housing section. Tungsten provides additional mass per equivalent volume compared to standard stem made from conventional steel. Strategically placed along the length of the wireline toolstring, the mass and drag reducing properties of the LiMAR® Multi Roller Tungsten Stem also serves to enhance bi-directional impact forces during jarring operations.
TOOL APPLICATIONS:
To reduce toolstring friction and provide the necessary mass required for a wireline toolstring to reach and function at depth
DESIGN FEATURES & BENEFITS:
Short, compact design of LiMAR® Multi Roller Wheel Sub
Available in a range of sizes to suit all completion designs
Hardened axles and wheels with replaceable bushings
Integral grease nipple for ease of maintenance and operation
Connection options to suit customer requirements
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Body OD Effective Roller OD Fish Neck Connection Length Options
1134-1250-XXX-RX 1.250" 1.480" 1.187" Optional 2' / 3' / 5'
1134-1500-XXX-RX 1.500" 1.750" 1.375" Optional 2' / 3' / 5'
1134-1875-XXX-RX 1.875" 2.250" 1.750" Optional 2' / 3' / 5'
1134-2125-XXX-RX 2.125" 2.375" 1.750" Optional 2' / 3' / 5'
1134-2500-XXX-RX 2.500" 3.250" 2.313" Optional 2' / 3' / 5'
