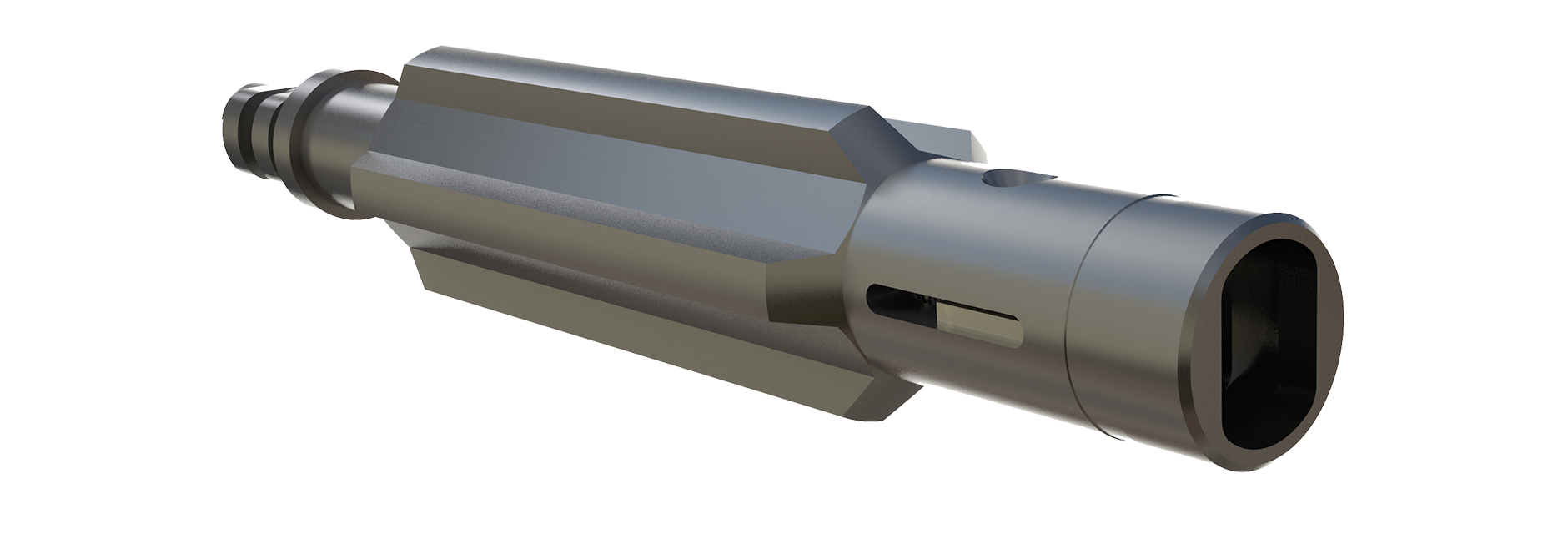

The Fluted Centraliser can also serve to reduce friction along the length of the toolstring and enhance the movement of telescoping components such as mechanical jars and accelerators. Milled flutes along the body allow the centraliser to pass through well fluid with minimal resistance.
TOOL APPLICATIONS:
To centralise a wireline toolstring within large tubulars
Protect and enhance toolstring manipulation
DESIGN FEATURES & BENEFITS:
Large bypass flutes to reduce fluid friction
Available in a range of sizes to suit all completion designs
Stepped / No-Go designs available
Connection options to suit customer requirements
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Assembly Part No. Nominal Tubing Size To Suit Sizes Up To Fish Neck Connection
1129-XXXX-XXX-RX 2-3/8" 2.000" Optional Optional
1129-XXXX-XXX-RX 2-7/8" 2.500" Optional Optional
1129-XXXX-XXX-RX 3-1/2" 3.000" Optional Optional
1129-XXXX-XXX-RX 4-1/2" 4.000" Optional Optional
1129-XXXX-XXX-RX 5-1/2" 5.000" Optional Optional
1129-XXXX-XXX-RX 7" 6.250" Optional Optional
