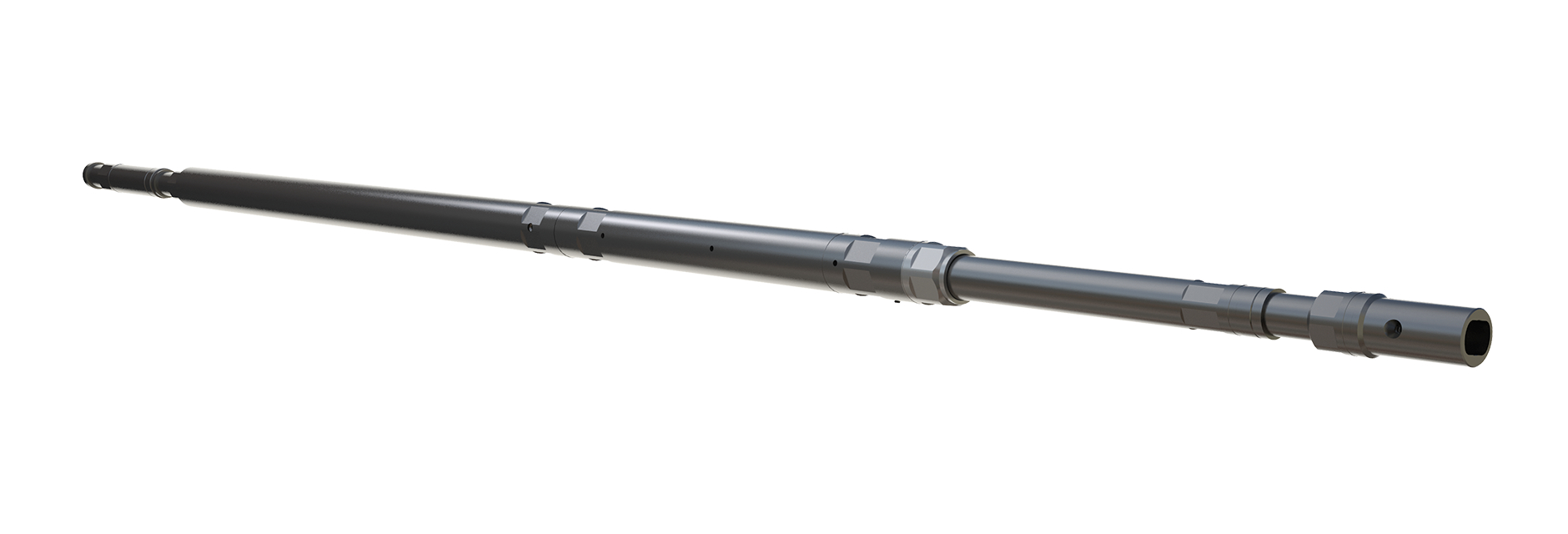

The LiMAR® CCT integrates all of the necessary functionality required of a wireline toolstring, in a reduced overall length whilst maintaining operational performance. The fully bespoke design can be as basic or complex as the customer desires. From a simple heavy stem and tubular jar configuration to a fully functional high impact, rollerised design, the operational flexibility is extensive.
TOOL APPLICATIONS:
For use during operations with limited lubricator / rig up height
Optimising toolstring performance in high angle wells
DESIGN FEATURES & BENEFITS:
Fully customisable to suit a range of applications by constructing the CCT from a selection of the following components;
Rope Socket - Braided Line
Rope Socket - Slickline
Swivel Sub
Accelerator
Stem
Roller Stem
Tungsten Stem
Tubular Jar Housing
Spring Jar
Hydraulic Jar
Dummy Slide Stem
Multi-Roller Sub
Fluted Centraliser
Lower connection options to suit customer requirements
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Product Code Component Options Actual OD (without Rollers) To Suit Tubing Size Upper Fish Neck Lower Connection Rollerised Option Available
1007 Rope Socket - Braided 3.250" 4-1/2", 5-1/2" & 7" 2.313" Optional Yes
1007 Rope Socket - Slick 3.250" 4-1/2", 5-1/2" & 7" 2.313" Optional Yes
1007 Swivel 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Accelerator 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Stem 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Tungsten Stem 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Roller Stem 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Tubular Jar Housing 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Spring Jar 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Hydraulic Jar 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
1007 Optional Slide Stem 3.250" 4-1/2", 5-1/2" & 7" N/A Optional Yes
