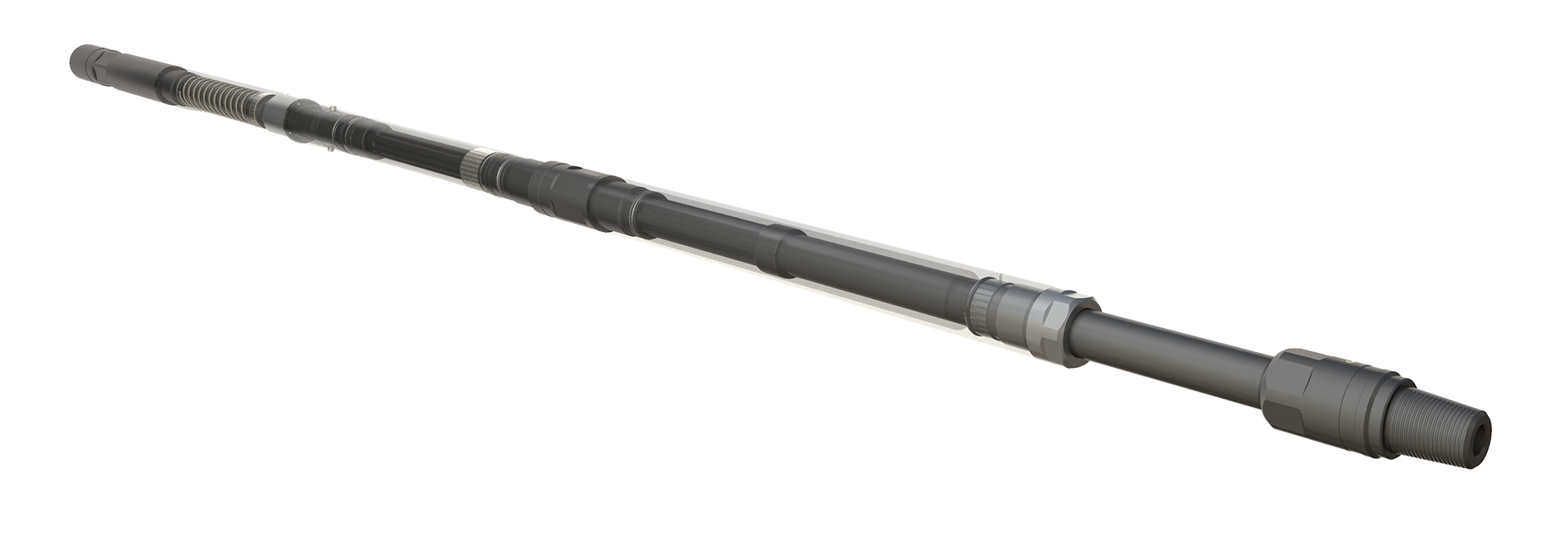

The Coil Jar is typically used in thru tubing fishing or work over operations to aid in removing fish from the well-bore where straight pull alone is insufficient. Varying impact loads can be produced simply by governing the applied weight and direction of the load.
TOOL APPLICATIONS:
To produce high impact loads during fishing operations or to be included in Milling, Drilling or Intervention BHA’s as a contingency measure
DESIGN FEATURES & BENEFITS:
Available in a range of sizes to suit industry standard Coiled Tubing BHA’s
Suitable for high temperature environments
Designed to produce extremely high impact forces
Can be run in Tension & Compression
Compact design ideal for restricted height applications
Large thru bore to accommodate drop balls
Varying delay pistons available to alter impact timing
Torque Thru Capability
Simple, robust design ensuring ease of operation for the end user
Selected components QPQ treated
Hexagonal flats for safe make-up & break-out
Connection options to suit customer requirements
Corrosion resistant materials
Assembly Part No. Actual OD Make up Length (Neutral)
220-1687-XXX-RX 1.687" 1.687" – 63.25"
220-2125-XXX-RX 2.125" 2.125" – 65.25"
220-2875-XXX-RX 2.875" 2.875" – 66.25"
