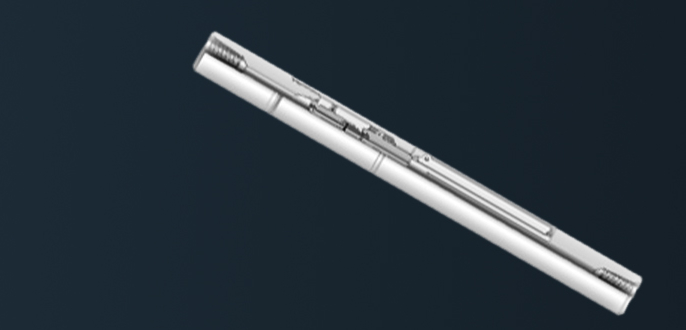

THE LOGAN INTERNAL PRESSURE PIPE CUTTER UTILIZES PUMP PRESSURE TO ACTUATE THREE CARBIDE-COATED KNIVES TO CUT SINGLE AND MULTIPLE STRINGS OF PIPE FROM 4 INCHES O.D. TO 36-INCHES O.D.
Each different size cutter can be dressed with different lengths of knives to cut different sizes of pipe. Pump pressure is preset by a simple adjustment so the knives will extend at the exact desired diameter. Flow restriction across an orifice feeds a piston that forces the knives out. When the knives reach a preset diameter, the operator will see a sudden pressure drop that indicates that the pipe has been cut.
Each different size cutter can be dressed with different lengths of knives to cut different sizes of pipe. Pump pressure is preset by a simple adjustment so the knives will extend at the exact desired diameter. Flow restriction across an orifice feeds a piston that forces the knives out. When the knives reach a preset diameter, the operator will see a sudden pressure drop that indicates that the pipe has been cut.
